Sneaker Sport Shoe Tongue Flipping Machine Shoe Making Machine

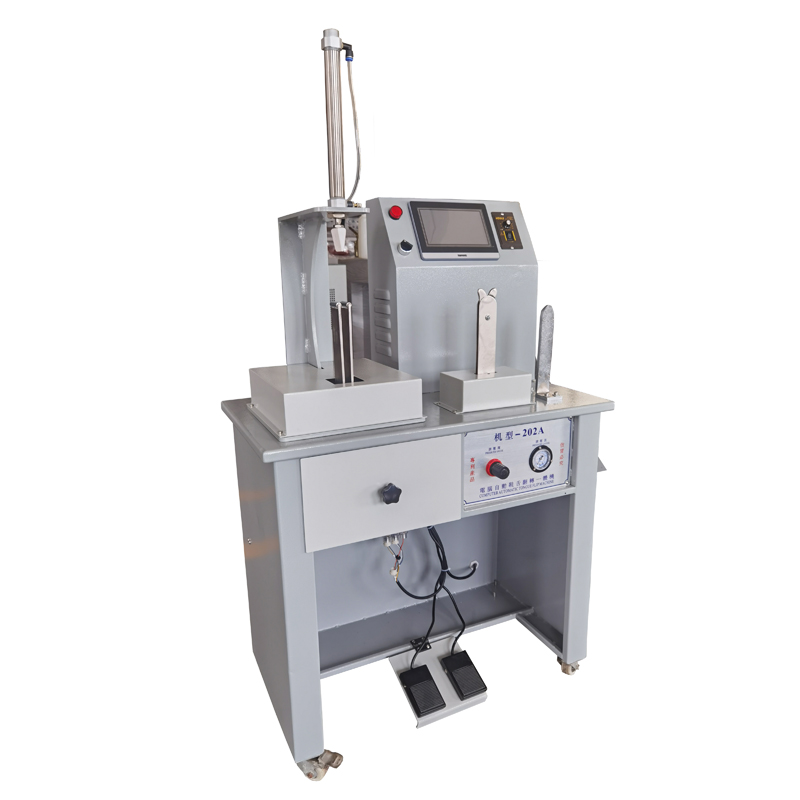

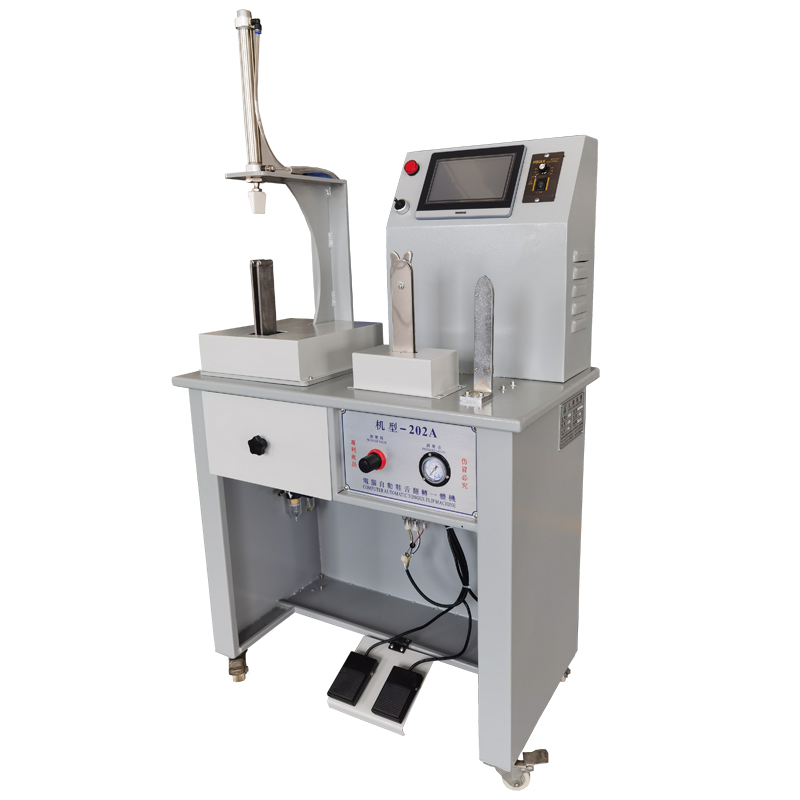

Automatic Sneaker Sport Shoe Tongue Flipping Machine Shoe Making Machine
1. The computer automatically turns the tongue and flatten the body machine, which is the machine that opens the opposite side of the tongue and angles
2. Using Plc to control the electric foot pedal to operate, the cylinder delay size and the elastic opening width can be set
according to the tongue requirement, which reduces the difficulty of manual operation of the flyer, increases the output by 50% and the lightly and automatically flips the tongue to open the angle evenly. It will damage the tongue and crack, which will bring convenience to the operator.
3. High efficiency, environmental protection, cleaner working environment, small footprint and easy movement.
4. automatic flip the tongue angle well-proportioned, will not damage the tongue, The use of work environment more clean, small space occupation, convenient to move.
Single-day production: about 2,500 pairs.
|
Machine Name |
Automatic Shoe Tongue Flipping Machine |
|
Machine Model |
DF-235B |
|
Machine Dimension |
750*420*1380 mm |
|
Packing Dimension |
850* 550*1480 mm |
|
N.W. |
65 KGS |
|
G.W. |
85KGS |
|
Voltage |
220V |
|
Power |
150W |
|
Output |
2000-2500Pairs/8H |
