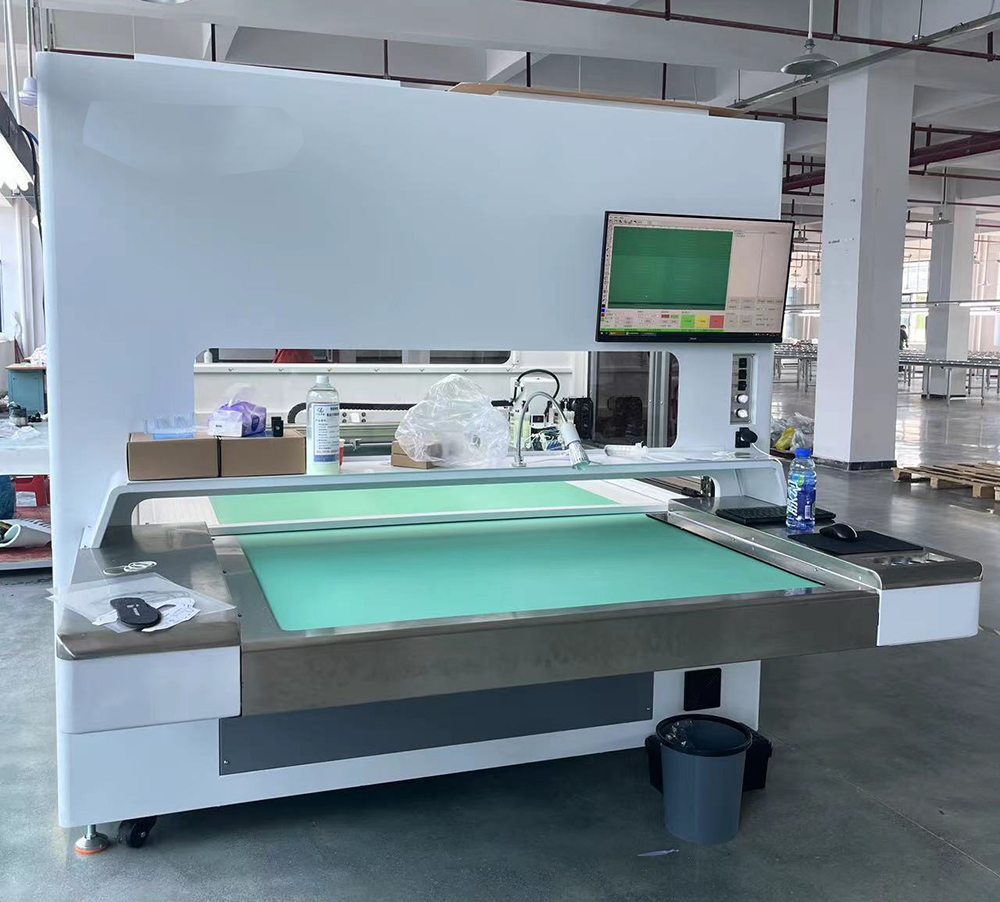

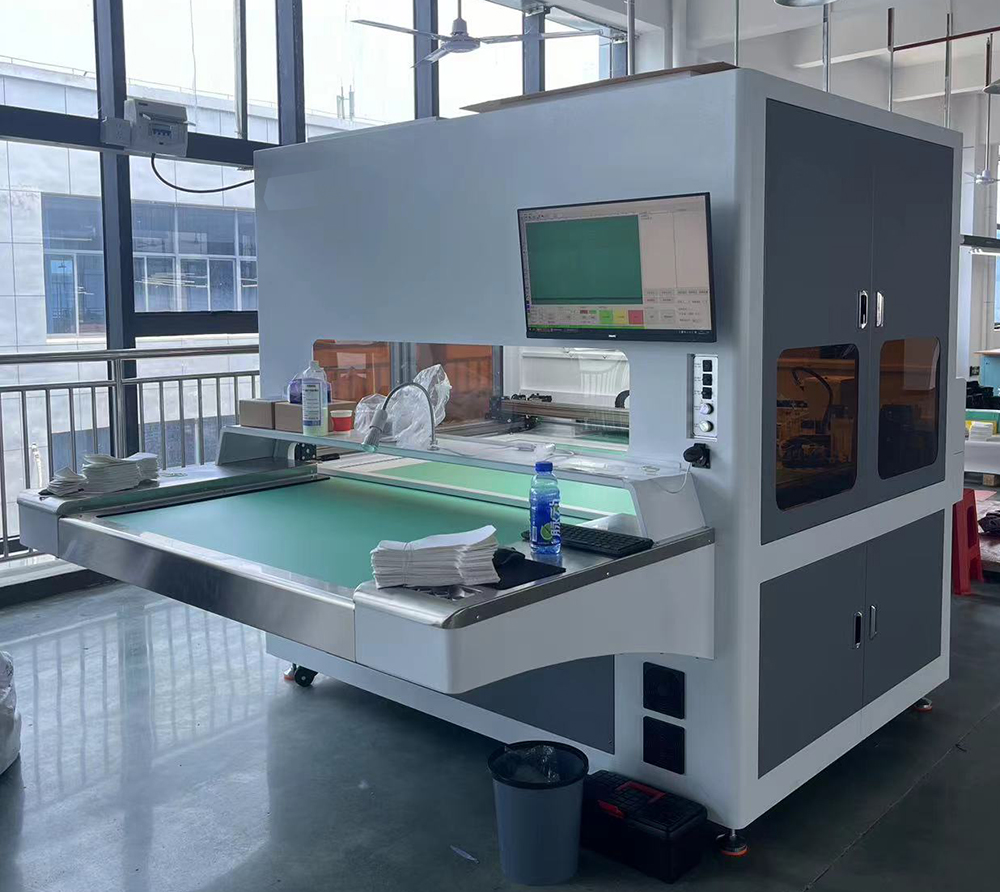

Intelligent Vision Digital Automatic Marking Printing Line Drawing Machine For Shoe Vamp Sole
Intelligent Vision Digital Automatic Marking Printing Line Drawing Machine For Shoe Vamp Sole
Intelligent Vision Digital Automatic Marking Printing Line Drawing Machine For Shoe Vamp Sole
FEATURES:
1.This machine is suitable for high-precision line drawing processes before sewing various shoe materials (PU, microfiber, genuine leather, fabric, etc.).
2.Fully automatic assembly line operation replaces traditional processes such as manual line drawing and screen
printing high efficiency, energy savings and environmental friendliness.

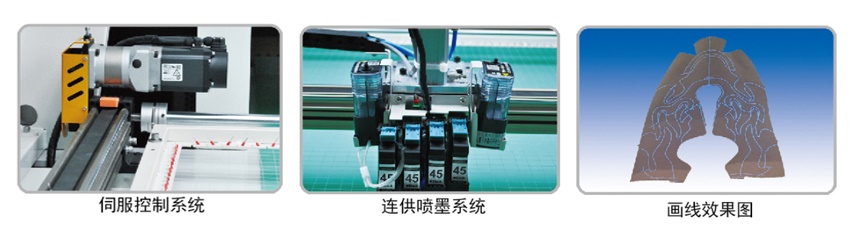

3. Utilizing servo motion modules, it achieves high speed, high precision and low failure rate.
4.Equipped with imported ink-jet heads, featuring fine spraying points and a standard sustainable ink supply system, saving consumables.
5.Several high-resolution industrial cameras combined with a visual computing system enable autonomous recognition and precise positioning for automatic line drawing for both thick and thin materials.
6. Compared to trajectory-based line drawing, the dot ink-jet printing mode offers faster speed and higher precision.
7. The material collection platform comes with a standard drying system to ensure material quality.
|
Model |
Size |
Working area |
Accuracy |
N.W/G.W |
Voltage |
Power |
|
DF-9323D |
3125*2683*2333 |
1800*900 |
≤0.5mm |
1200KG/1350KG |
220V/50Hz |
4.5KW |
