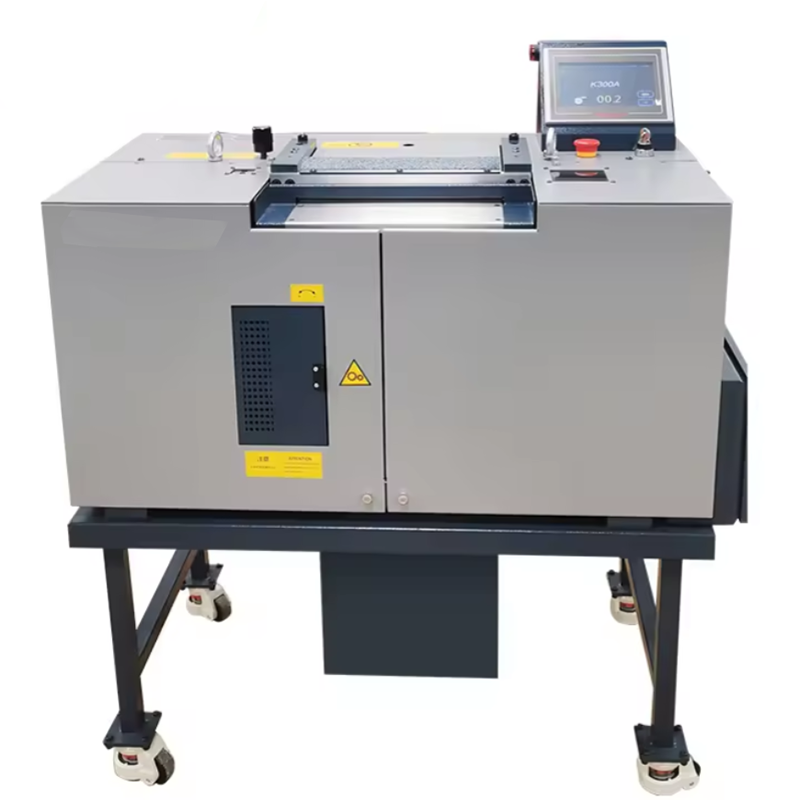

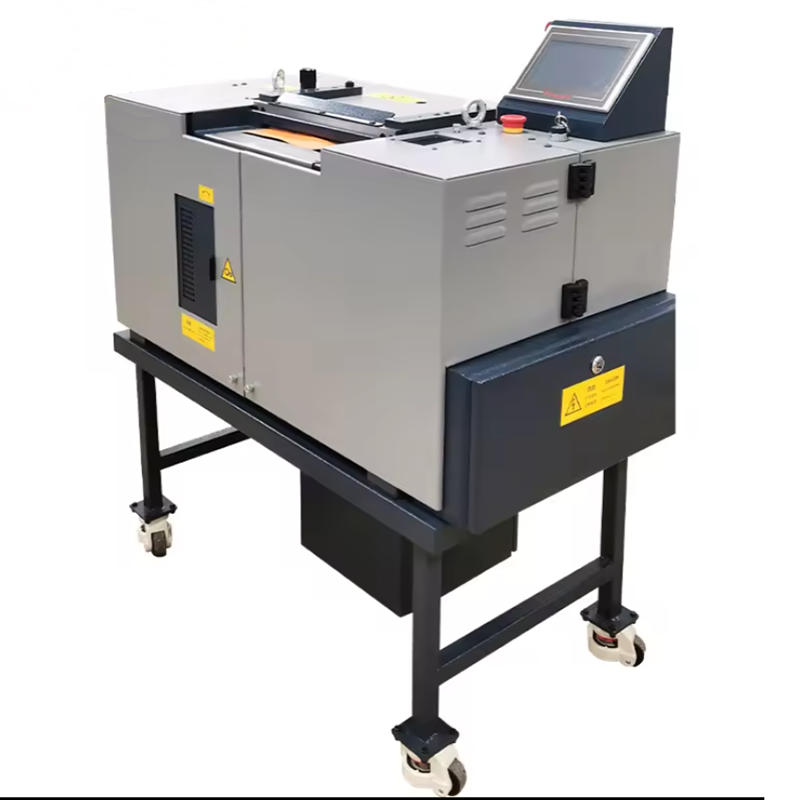

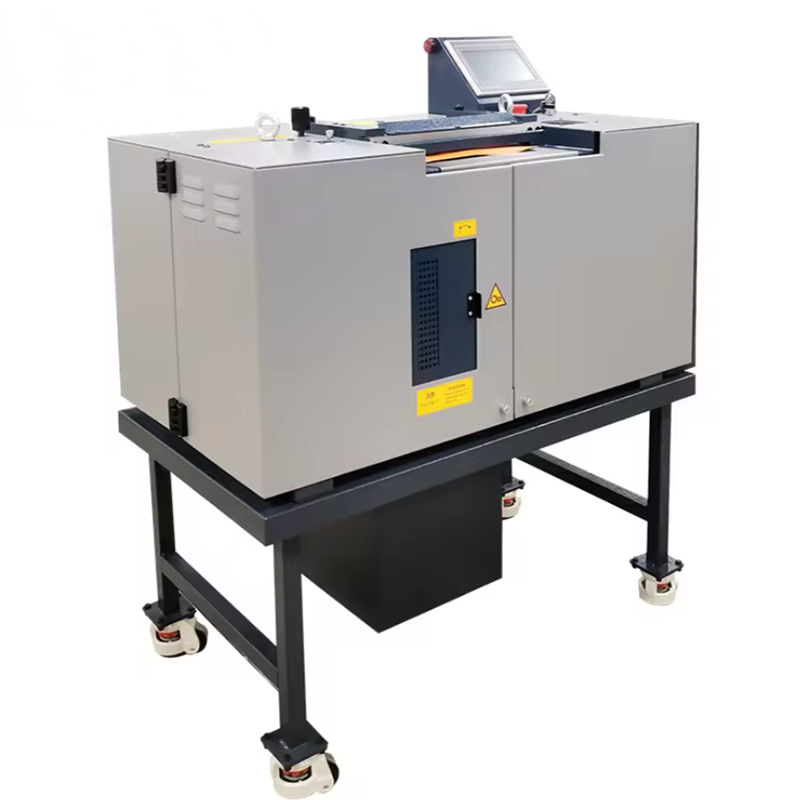

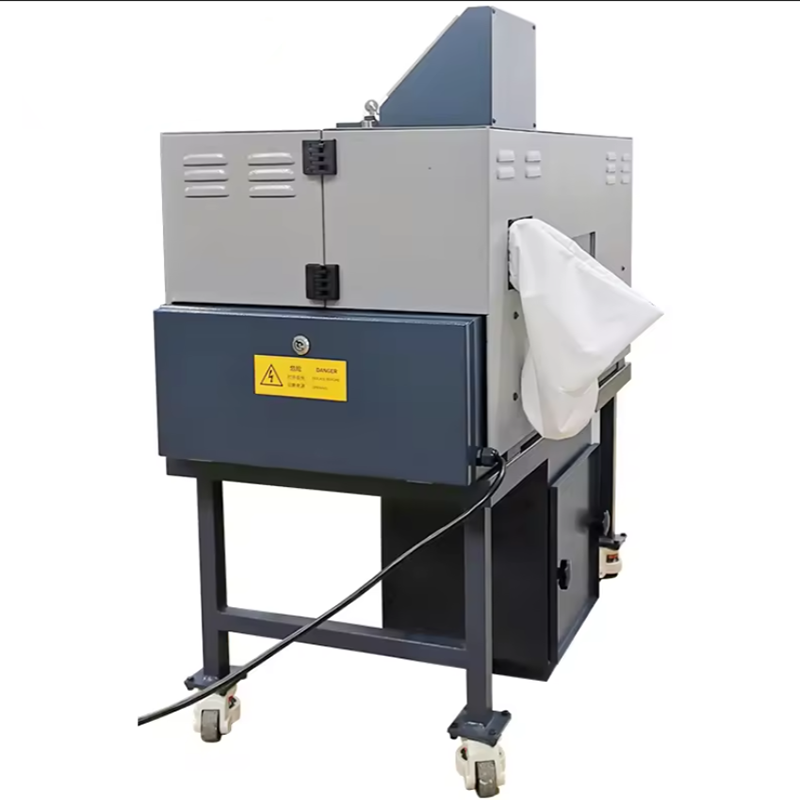

Hot Sale Small China Band Knife Camoga Fortuna Leather Splitting Splitter Machine Price
Hot Sale Small China Band Knife Camoga Fortuna Leather Splitting Splitter Machine Price
Purpose
It is suitable for all kinds of high-precision layered operation of genuine leather, leather, PVC, EVA, ultra filament, rubber and other materials in belt, cell phone cover, handbag, luggage, shoemaking, electronic products, stationery, sporting goods, auto type, pipeline detection and other industries, with a minimum thickness of 0.1mm!
Features
1. Working width: it is broadened to 300mm, which is smaller and more convenient;
2. The function of color screen has been upgraded, which can display the machine fault, splitting thickness, feeding speed,
etc., and give the fault solution in graphic and character;
3. Feeding speed is controlled by touch screen;
4. It is equipped with the function of calculating and displaying production schedule target and output, and users can master the status of processing quantity in real time;
5. It is equipped with video function, and the display contents include operation video file, fault video file and maintenance
video file;
6. The strong wind blade is used in motor, which makes the dust suction more powerful;
7. The internal structure of the machine is formed by integrally casting;
8. Electrical box: it is controlled by PLC system with higher stability; imported circuit components are used to improve control and service life; EU-US24V DC safety operation voltage; unique phase sequence protection device and filter device; thermal protection of all motors; it is compatible with three-phase 380V and three-phase 220V; customized single-phase 220V; CE certified;
9. It is equipped with device of automatic dust removal, sharpening and clutch unit, optical microscope, etc., to keep machine clean with good working environment;
10. Centrifugal vacuum cleaner is used in the dust collection system.
|
Model |
DF-300C |
|
Maximum splitting width |
300 mm |
|
Maximum splitting thickness |
3 mm |
|
Minimum splitting thickness |
0.05 mm |
|
Knife belt size |
2065x40x0.5 mm |
|
Power |
1200 w |
|
Dimensions |
1000*520*1100 mm |
|
Packing dimensions |
1100x610x1240 mm |
|
Net weight |
190 kg |
