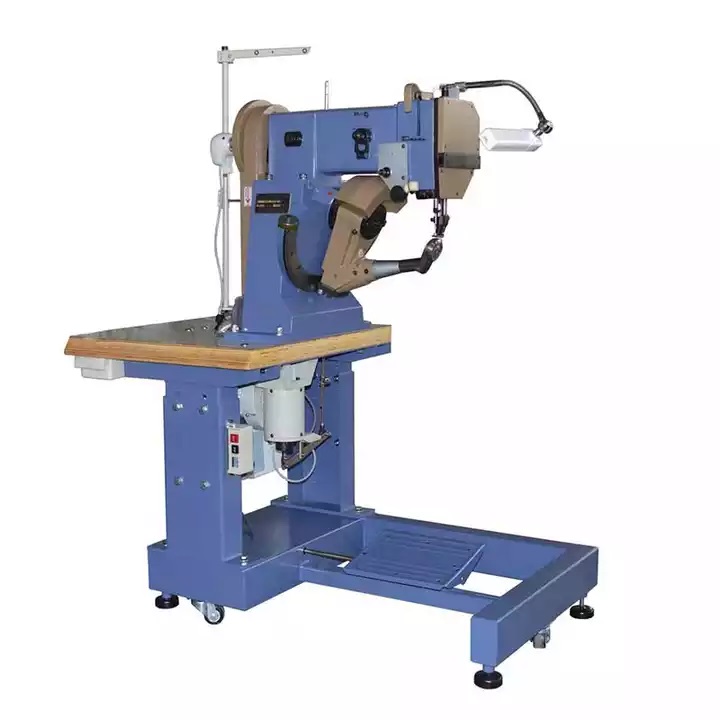

Industrial children shoe side and upper sewing machine children kids shoe sewing machine
Industrial children shoe side and upper sewing machine children kids shoe sewing machine
|
Technical parameter: |
|
|
Sewing speed |
Stepless speed regulating |
|
Stitch |
Double lock |
|
|
Compound thread |
|
Stitch length |
3-10mm |
|
Needle spacing |
1.5-6mm |
|
Sewing needle |
CP*5(23#25#) |
|
Motor |
750W/ 220V one-phase 50-60hz 750W/ 380V three-phase 50-60hz |
|
Net weight |
230Kg |
|
Domestic packing gross weight |
about:300Kg |
|
Domestic packing parameter |
135*73*149(L*W*H) cm |
|
Exportation packing gross weight |
320Kg |
|
Exportation packing parameter |
136*78*156(L*W*H) cm |
|
Characteristics: |
|
|
1. For sew baby shoe. |
|
|
2. All parts were manufactured by HAAS CNC machines, high precision machining parts. |
|
|
3. Using electronic speed motor speed can be flexible, stop the needle position by computer control. |
|
1.Excellent structure design and operation is simple and efficient.
2.The speed can be adjusted by means of an electronic governor motor.
3.All parts were manufactured by HAAS CNC machines, high precision machining parts.
This baby shoes machine is a special sewing machine for sewing baby shoes or samll shoes.
Children's shoes are generally small to cater to this feature. This horn head size is only 59mm.
Under normal circumstances, the machine either sews the side or sews the bottom. In addition to sewing the side edges of the children's shoes, the sewing machine can also sew the stitches of the front uppers of the children's shoes,specific can be seen from the shoes picture below.
This machine is very similar to the other 268E type, but the size of the horn head is different. The size of the horn is smaller.
All parts were manufactured by HAAS CNC machines, high precision machining parts.
Using electronic speed motor speed can be flexible, stop the needle position by computer control.
