DF-168WF Shoe Outsole Side Wall Stitching Machine Seated Type Double Thread Side Seam Sewing Machine For Football Shoes
DF-168WF Shoe Outsole Side Wall Stitching Machine Seated Type Double Thread Side Seam Sewing Machine For Football Shoes
Automatic Industrial Double Thread Shoe Sole Stitch Side Sewing Making Machine
Separable-type transmission pulley that will run five idle turns and cut off power automatically power automatically when
encountering any obstacle in operations.
it is able to stitch with the No. 18 thread without changing the rotating hook opener.
No thread ends at needle points.
Double shaft positioning thus improving durability of the main shaft.
Equipped with P.l.V motor to position the needle and lift the presser foot automatically.

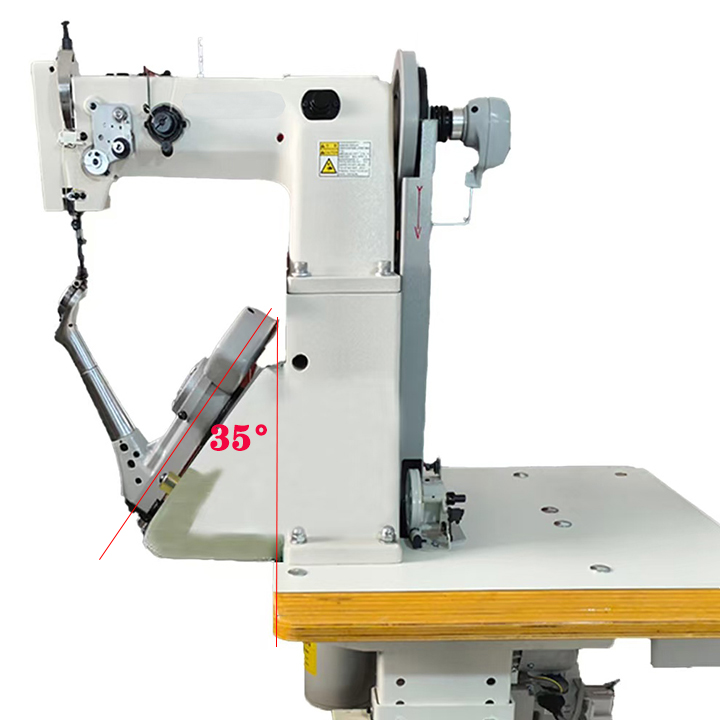

The rocker arm has a slope of 35 ° , which can be used to sew football shoes and Arabic slippers. The sewing
speed is fast and the stitching is more beautiful.
Product Paramenters
|
shuttle size |
|
|
machine type |
DF-168WF |
|
diameter |
26mm |
|
thickness |
11mm |
|
wire diameter |
14mm |
|
machine type |
DF-168WF |
machine name |
Double Thread Side Seam Sewing Machine |
|
maximum speed |
800S.P.M |
largest sewn head |
13mm |
|
use needle |
CPx5 |
needle trip |
38mm |
|
maximum car thickness |
6mm |
press the foot lift amount |
13mm |
|
Gross weight |
176KG |
machine size |
1150×600×1400mm |
DF-168WF Shoe Outsole Side Wall Stitching Machine Seated Type Double Thread Side Seam Sewing Machine For Football Shoes
