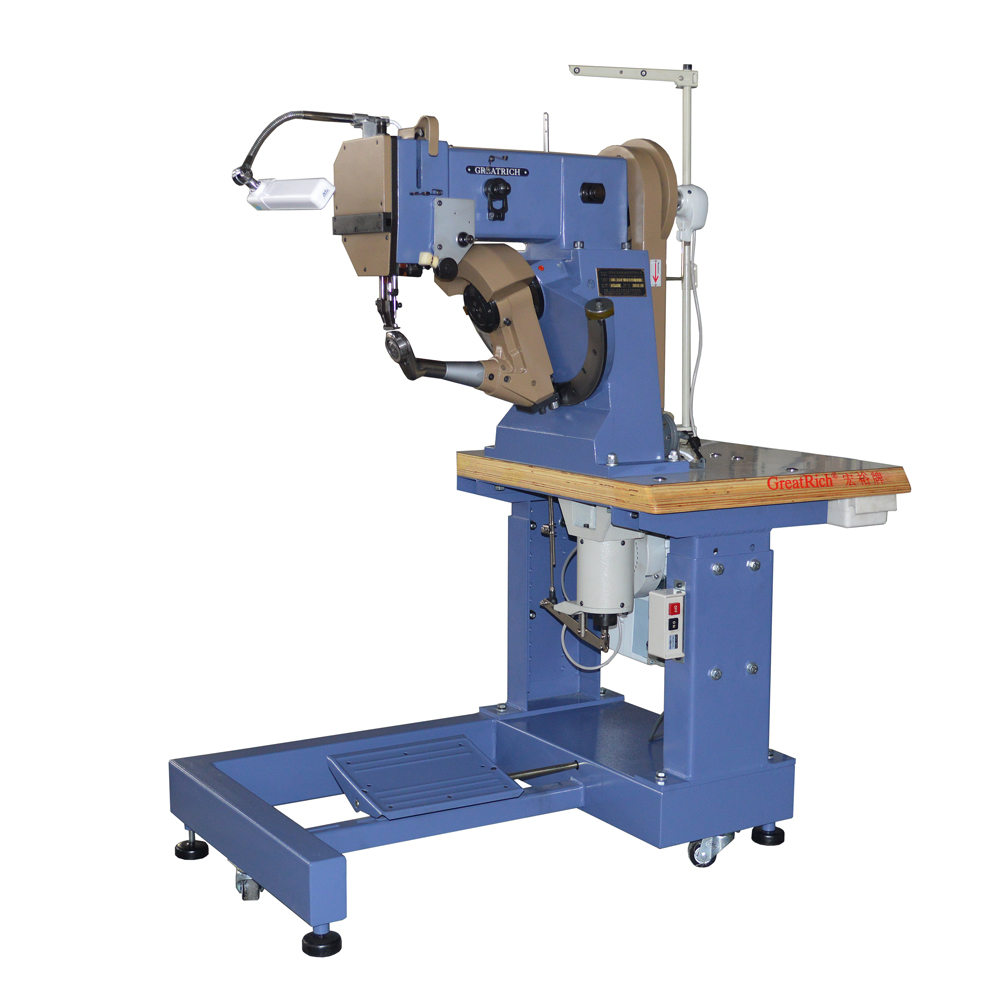

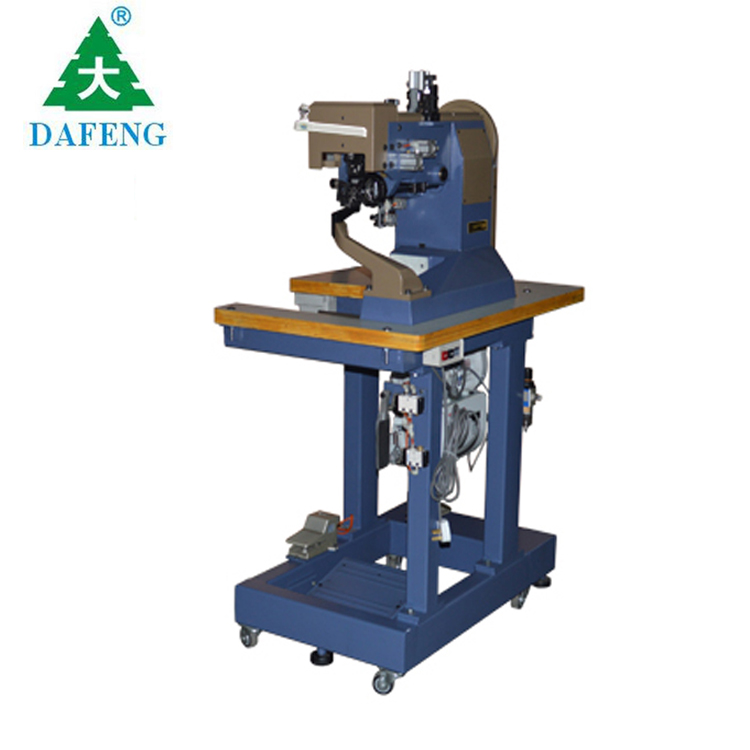

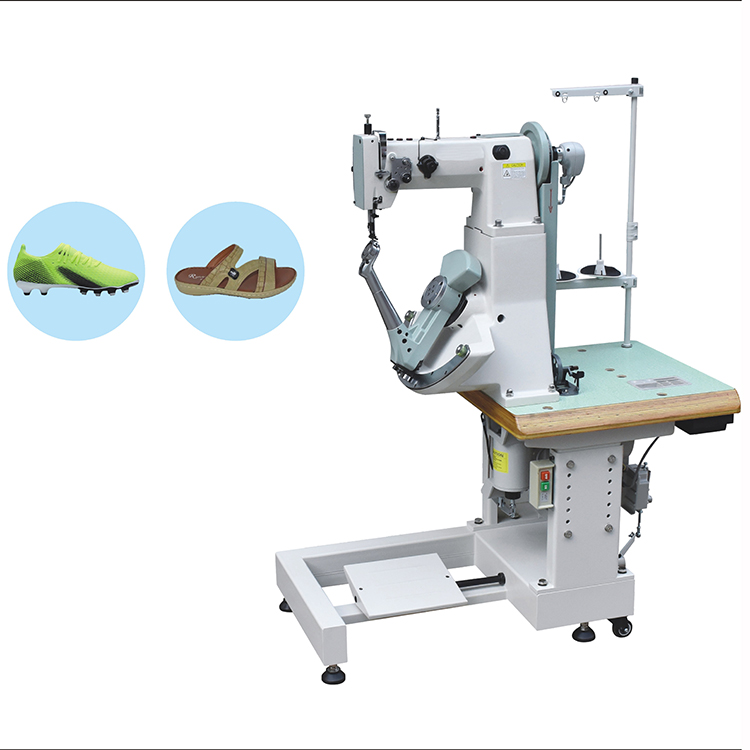

168 Diagonal Arm Double Thread Inner Shoe Insole Side Stitching Machine Shoe Boot Outsole Side Wall Sewing Machine
168 Diagonal Arm Double Thread Inner Shoe Insole Side Stitching Machine Shoe Boot Outsole Side Wall Sewing Machine
168 Diagonal Arm Double Thread Inner Shoe Insole Side Stitching Machine Shoe Boot Outsole Side Wall Sewing Machine
Products Description
Automatic Industrial Double Thread Shoe Sole Stitch Side Sewing Making Machine
Separable-type transmission pulley that will run five idle turns and cut off power automatically power automatic when encountering any obstacle in operations.
It is able to stitch with the No. 18 thread without changing the rotating hook opener.
No thread ends at needle points.
Double shaft positioning thus improving durability of the main shaft.
Equipped with P.l.V motor to position the needle and lift the presser foot automatically.
Product Paramenters
|
梭子尺寸/shuttle size |
||
|
机器型号/machine type |
DF-168W |
DF-168WS |
|
直径/diameter |
26mm |
20mm |
|
厚度/thickness |
11mm |
8mm |
|
线径（九股线）/wire diameter |
14mm |
8mm |
|
机器型号/machine type |
DF-168W/WS |
机器名称/machine name |
双线座式内线机 |
|
最高转速/maximum speed |
800S.P.M |
最大缝目/largest sewn head |
13mm |
|
使用机针/use needle |
CPx5 |
针棒行程/needle trip |
38mm |
|
最大车厚/maximum car thickness |
6mm |
压脚提升量/press the foot lift amount |
13mm |
|
毛重/Gross weight |
168KG |
机器尺寸/machine size |
1150×600×1400mm |
