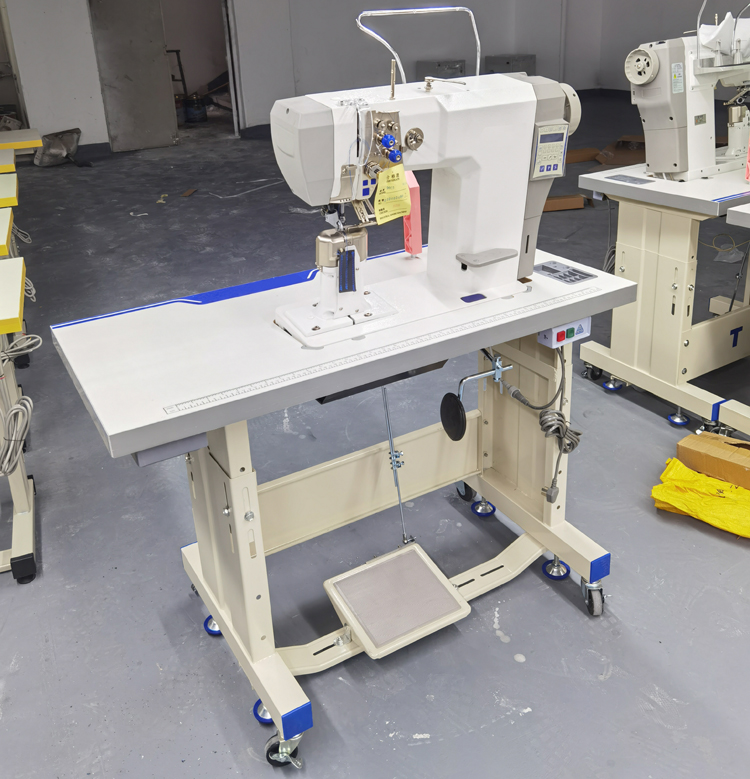

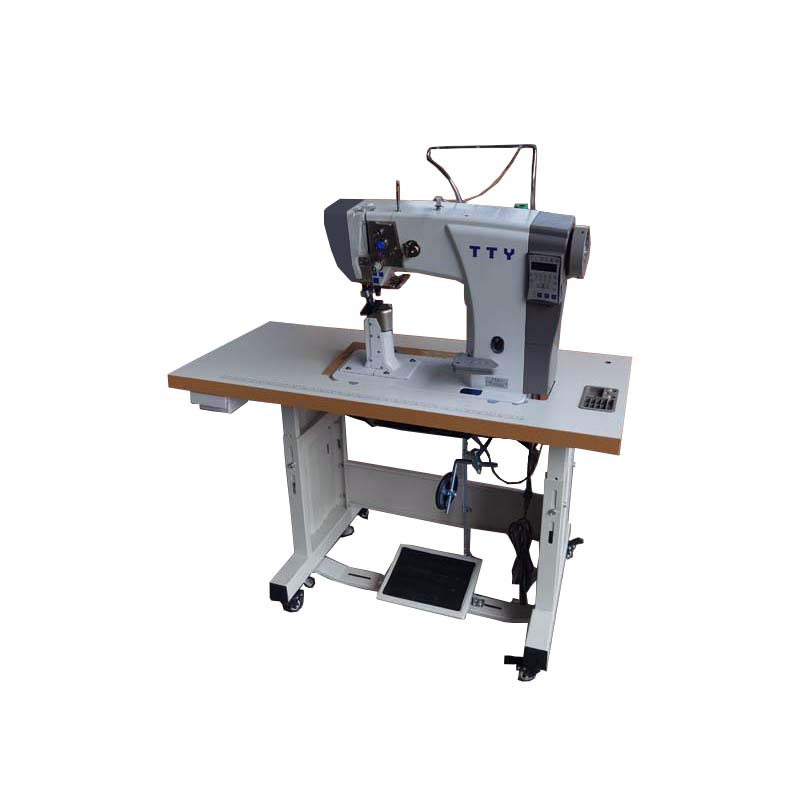

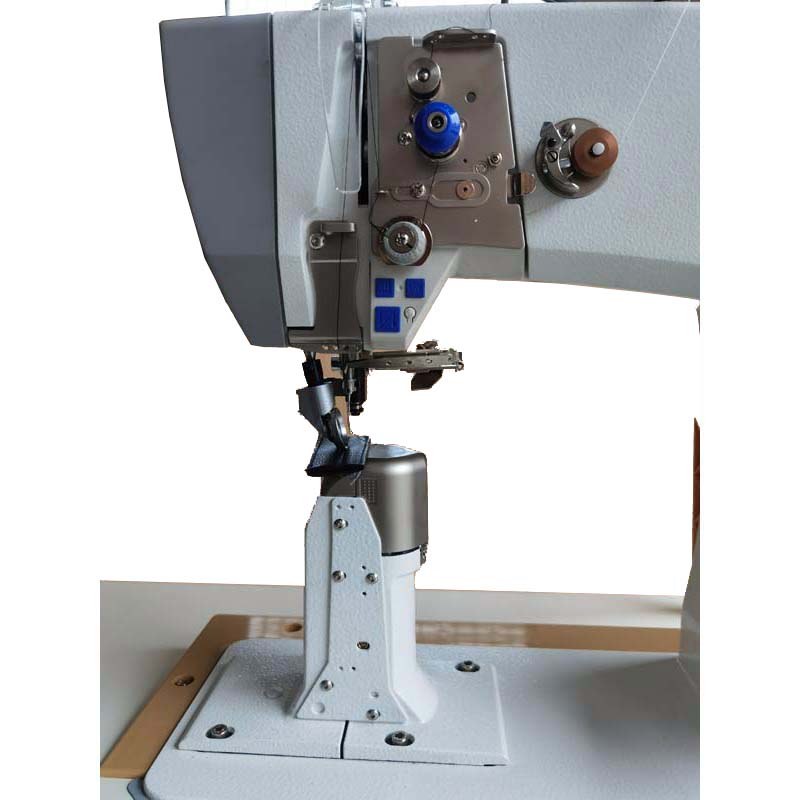

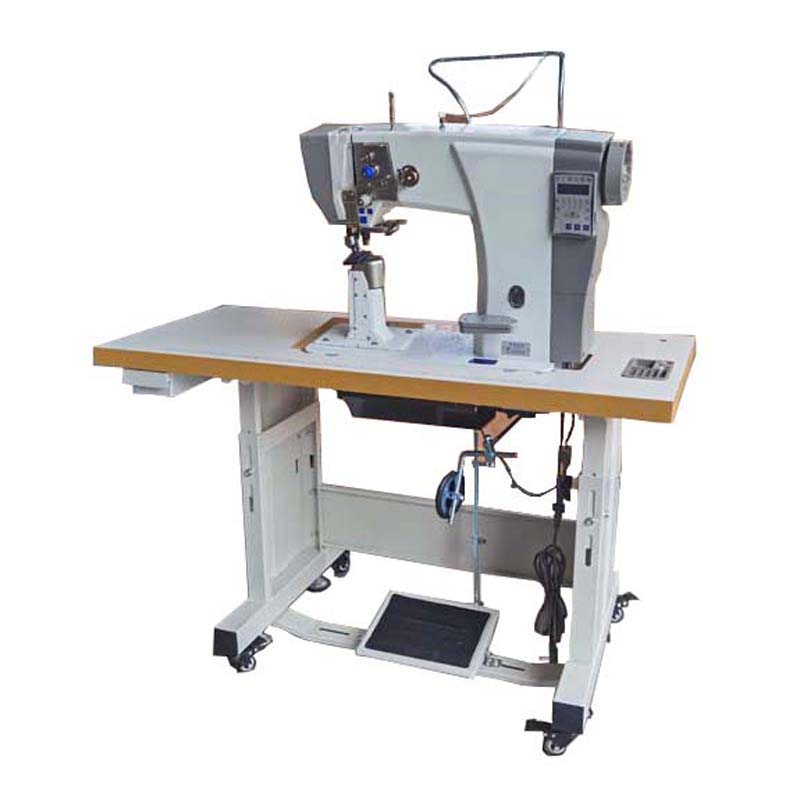

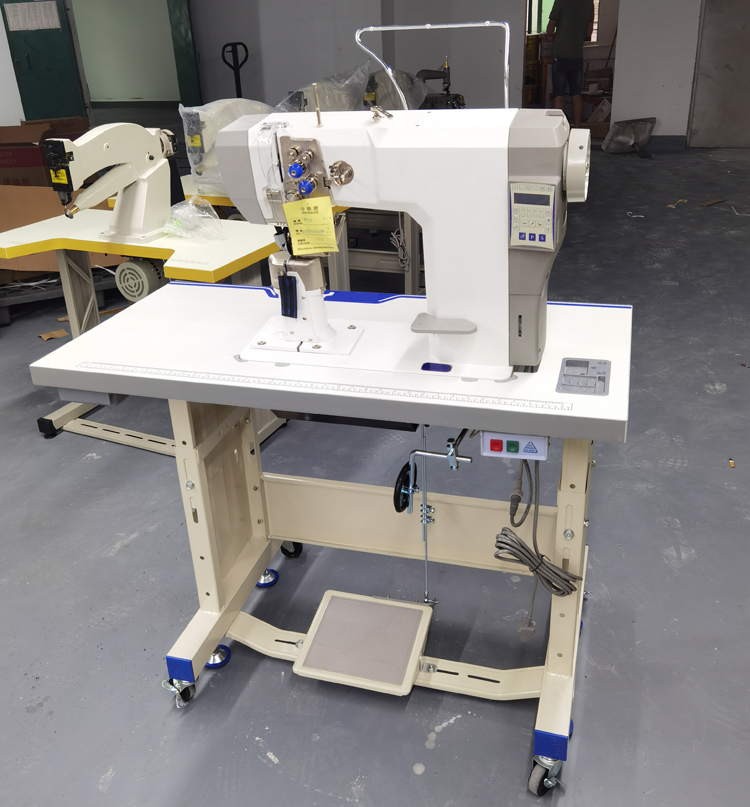

Heavy Duty Single Double Needle Post Bed Walking Shoes Upper Industry Leather Sewing Machine
Heavy Duty Single Double Needle Post Bed Walking Shoes Upper Industry Leather Sewing Machine
Built-in servo motor, mechatronics, 60%-70% energy saving
Automatic wire cutting (the tangent line is short and the line knot is left at the bottom)
Automatic lifting of presser foot
Can be backsewn, and automatic backsewn
Less mechanical failure, easy maintenance, automatic refueling
This series of high speed sewing machines are used in shoemaking industry.
Suitable for sewing leather, bags, gloves, hats and other arc-shaped thick materials.

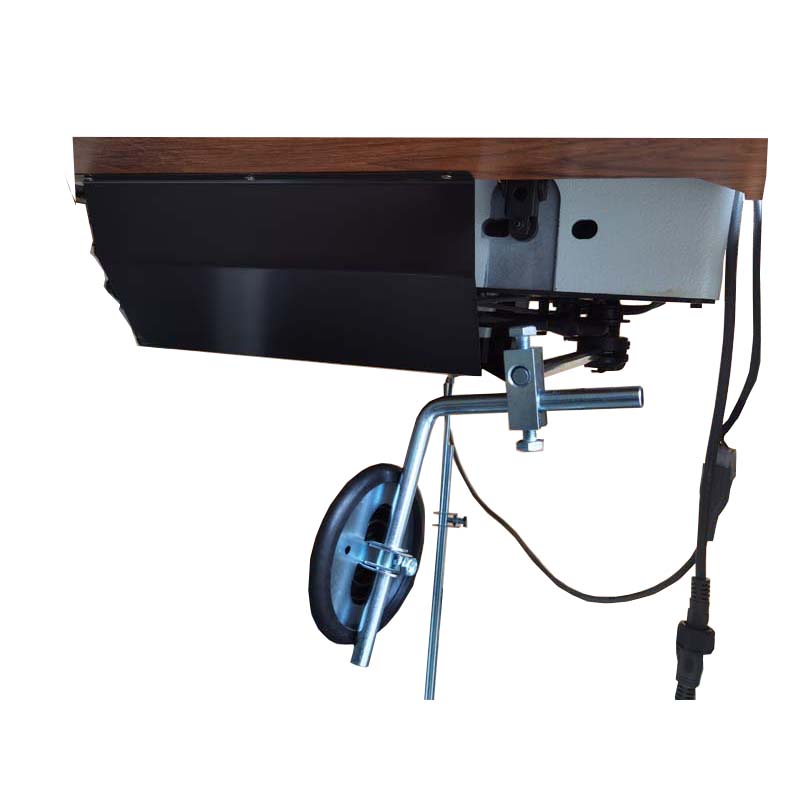

Servo direct drive motor, energy saving.
The model is electronically controlled and does not require compressed air.
Adopt overloading clutch for rotary shuttle protection.
Convenient and precise adjustment of needle baffle.
Multi-function switches with pre-programmed functions are built into the nose.
Backseam/intermittent locking
Default speed selection
Automatic cutting, reverse sewing, lifting foot.
|

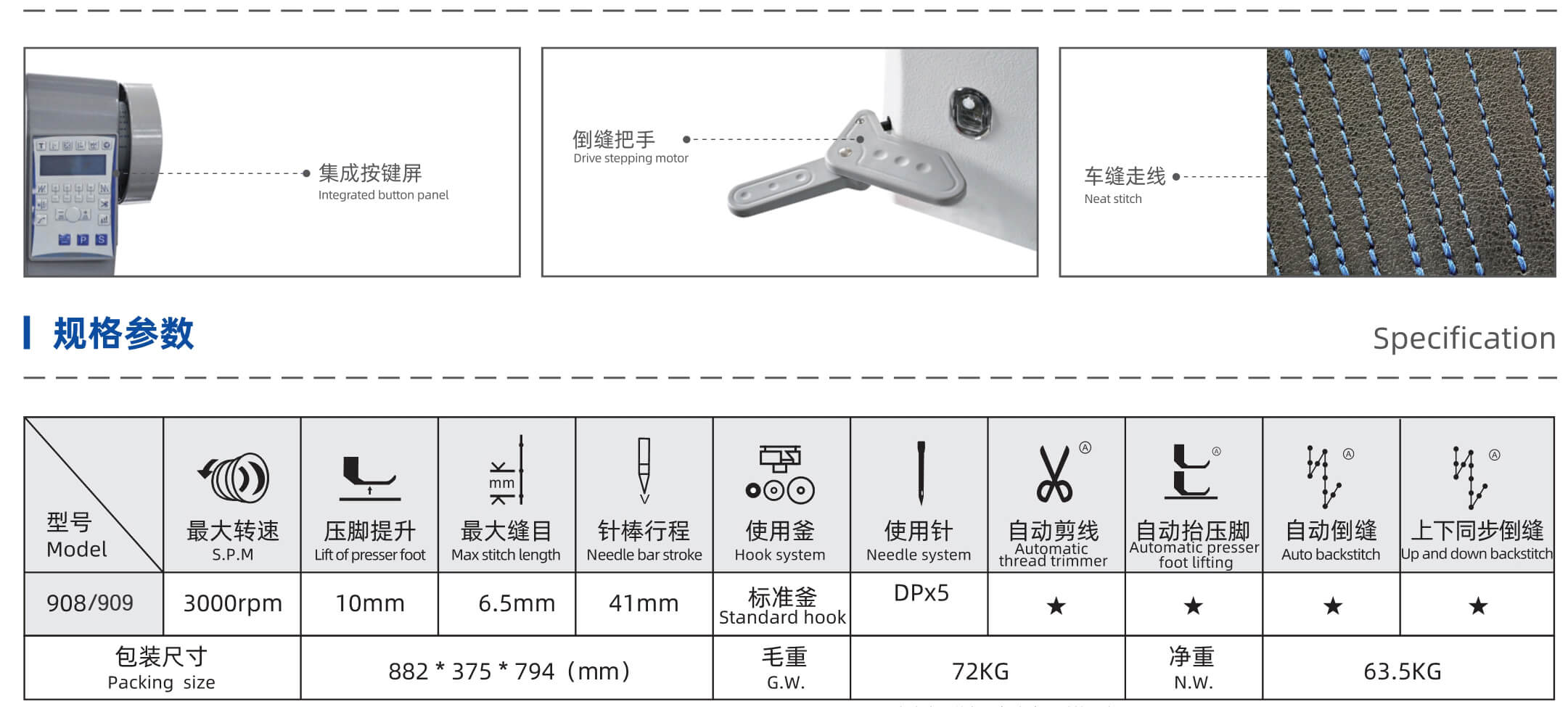

Model |
Power |
Dimensions |
Voltage |
N.W |
G.W |
|

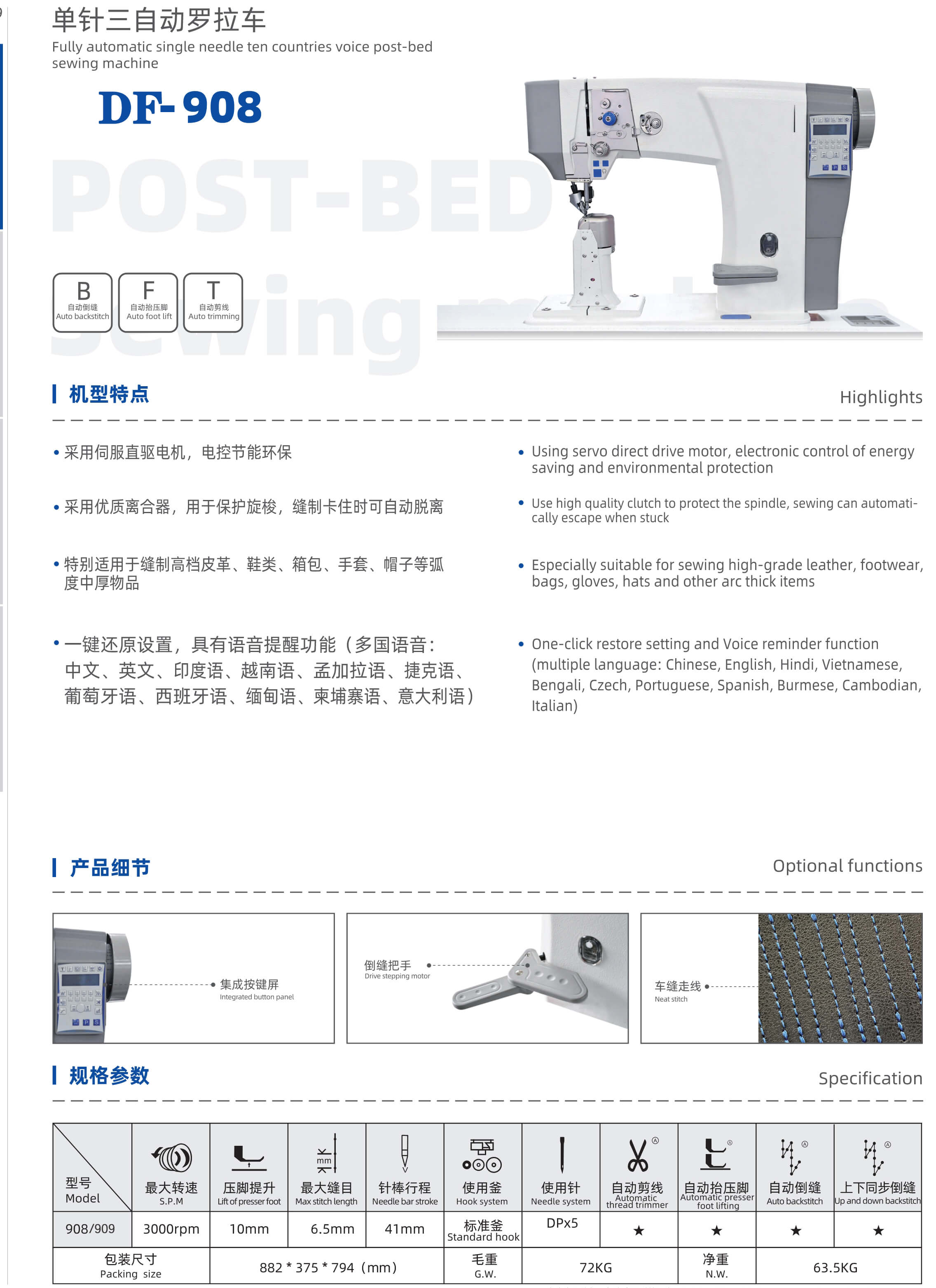

DF-908 |
0.3KW |
1200*600*1280mm |
220V |
90KG |
100KG |
|
DF-909 |
0.3KW |
1200*600*1280mm |
220V |
90KG |
100KG |
