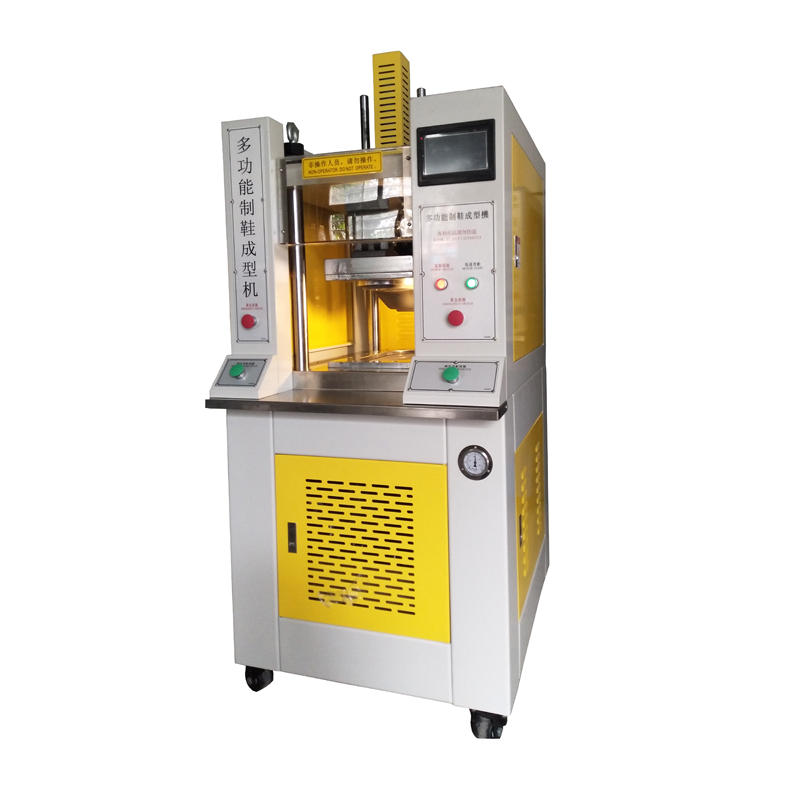

Shoe Sole Pressing Machine, Shoe Sole Making Pressing Attaching Machine
Shoe Sole Pressing Machine, Shoe Sole Making Pressing Attaching Machine
Special Function
1.The molding machine is suitable for outsole bonding or vamp and outsole laminating of leisure shoes and various sports shoes.
The hydraulic oil is injected into the cylinder sleeve, the expansion rubber sheet is extruded by the pressure, and the principle of expansion and compression is used to achieve the purpose of the all-directional extrusion, so as to make the laminating perfect. The processing shoes put in the round hydraulic cylinder sleeve and compress moulding, easy operation, the durability of each rubber sheets is up to three hundred thousand, it is one of the major breakthroughs in shoe molding machine. This machine is placed on the molding line will replace the wall press machine, put on the outsole process line will replace the wall press machine and hydraulic press. Put in the development room, the machine can press the outsole and do the shoe molding at the same time.
2. With oil pressure system, the pressure can be adjusted by the shoe shape, the average pressure is up to 30kg/cm2.
3. The molding machine adopts with all directional pressure. It can complete the process that wall press machines can not do. For example, the molding shoe side or back with side wall, the side strip can press well.
4. Conform to safety standards, with safety sensors and emergency buttons to eliminate risks
5. One machine can complete the double pressing process, reducing the number of multiplayer waste
No need to make the traditional wall press mold, reduce mold cost, regardless of size code, regardless of left and right foot. Hydraulic oil is water soluble, non-toxic, no environmental problems.
|
Model |
Press range |
Working range |
production efficiency |
Working oil |
N.W |
voltage |
size |
|
DF-460S |
0-30KG/CM2 |
Size:5-15yard |
7sec/pairs |
Water soluble hydraulic oil |
1000kg |
220V/380V |
780*1000*2000mm |
|
DF-460 |
0-30KG/CM2 |
Size:5-15yard |
7sec/pairs |
Water soluble hydraulic oil |
2000kg |
220V/380V |
1380*1000*2000mm |
