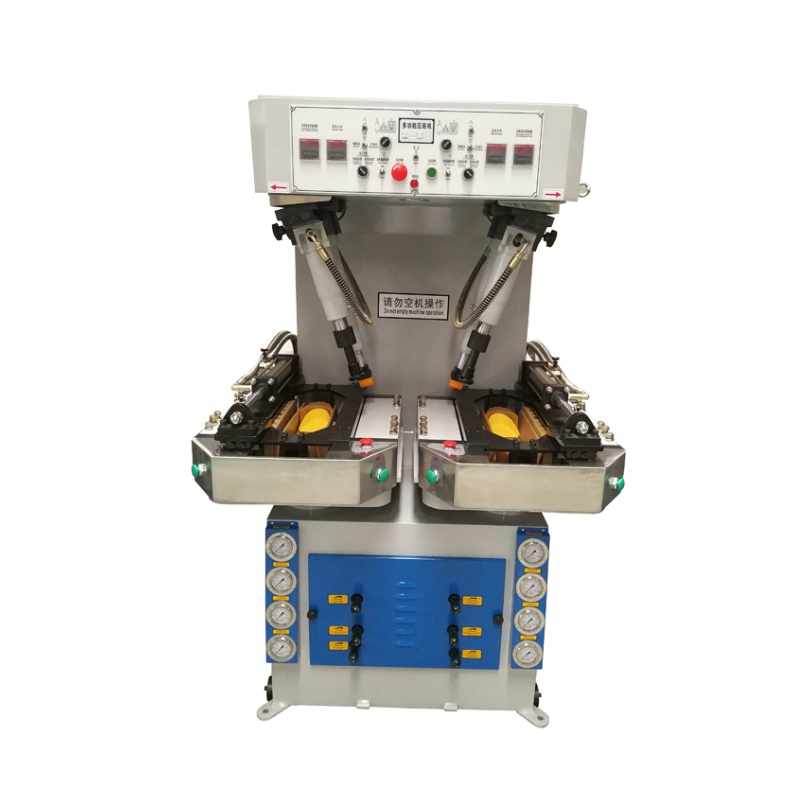

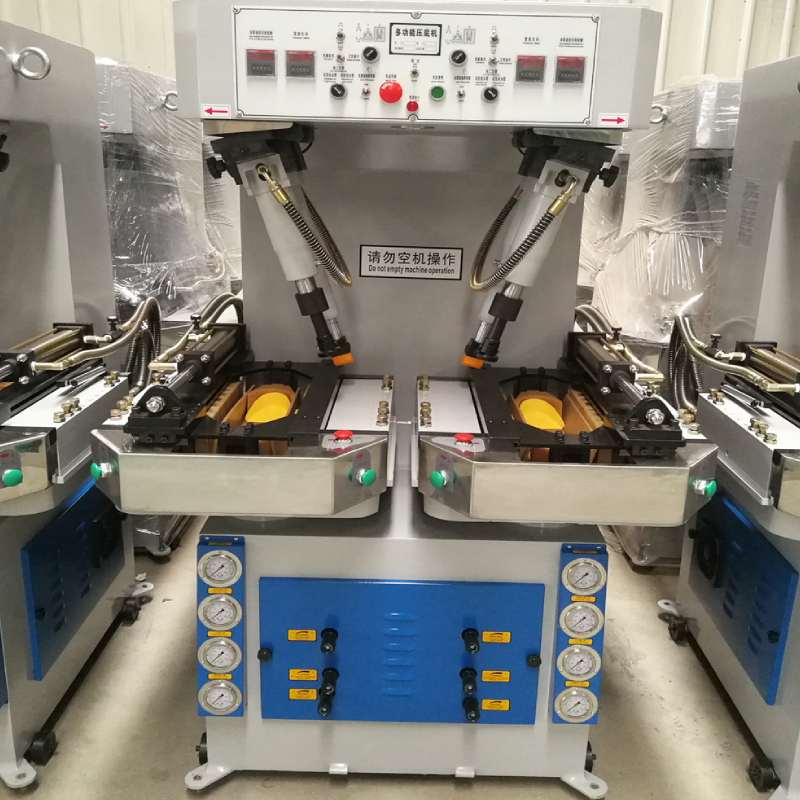

Hydraulic sole pressing machine,Sole attaching machine,footwear machine

Hydraulic sole pressing machine,Sole attaching machine,footwear machine


Features:

This machine is fully controlled by hydraulic system. It is suitable for outsole attaching of jogging shoes, walled sports shoes and casual shoes. The operation of outsole  pressing, and front-rear pressing can be accomplished simultaneously or respectively. The heavy pressing which helps the shoe industry upgrading.

1\There is a prepared oil-tank to supplement  oIL  when cylinder rising which makes the rising faster and saves the operation time to increase benefit.

2\The hydraulic automatic balancing system is adopted for the  machanism  of pressing  rods.The height of  rods need no manual adjustment,  which helps simplify  operaton.

3\The design of automatic bias angles setting for the  mechanism  of pressing rods  makes shoes locating easy and even for boots.

4\When the mechanism of front-rear pressing  receds ,a special  circiut  device is adopted to control the receding stroke, and the proper receding distance is acccordingly for locating different size of shoes.

5\There is a peressure adjusting function for every operation which makes the pressing result pefect.

6\Automatic balancing rods and swing attaching mechanism
The  height of attaching rods is controlled by hydraulic automatic balance system so that it is noe necessary to adjust the attaching rods when the height of last is different also it could ensure the pressure of the two attaching rods almost the same and the attaching power on every point of the sole is the same .The attaching rods can swing simultaneously. It is  convient  to put and take out of the last.
The design is better than the old design of the machine with fixed attached rods.

7\Side attaching machanism
The side attaching adopts whole hydraulic control. There are nine pcs of rubber foaming pressing objiects to make a tight pressing according to the  shape of shoes. Each foaming pressing object is ontrolled by an individual cylinder which pressure reaches to 250-300kgs.Two sets of these foaming pressing objects each in the front and the rer for options to ensure th ebest performance of side attaching.

8\Special function for DF-818
a. There are eighteen pressing pads on the bottom of the pressing machanism.The pads are controlled by cylinders to up and down to firm the shape of different shoes.
b.The pressing pads can be changed with different height ones or be modified to meet different shapes of outsoles without using models so as to save much cost.





Model

Mechanical dimensions

(length, width and height)

Packaging size

(length, width and height)

Weight Use pressure Power

DF-818A

1080*1180*1950mm

1380*1380*2300mm

1280KG

20-50Kgs/c㎡

3HP

DF-818B

1080*1180*1950mm

1380*1380*2300mm

1280KG

20-50Kgs/c㎡

3HP

DF-818C

1080*1180*1950mm

1380*1380*2300mm

1280KG

20-50Kgs/c㎡

3HP
