Automatic Safety Combat Boots Shoe Making Machine Rubber Vulcanizing Machine Dvp Press Compression Rubber Molding Machine
Automatic Safety Combat Boots Shoe Making Machine Rubber Vulcanizing Machine Dvp Press Compression Rubber Molding Machine
Automatic Safety Combat Boots Shoe Making Machine Rubber Vulcanizing Machine Dvp Press Compression Rubber Molding Machine
Products Description

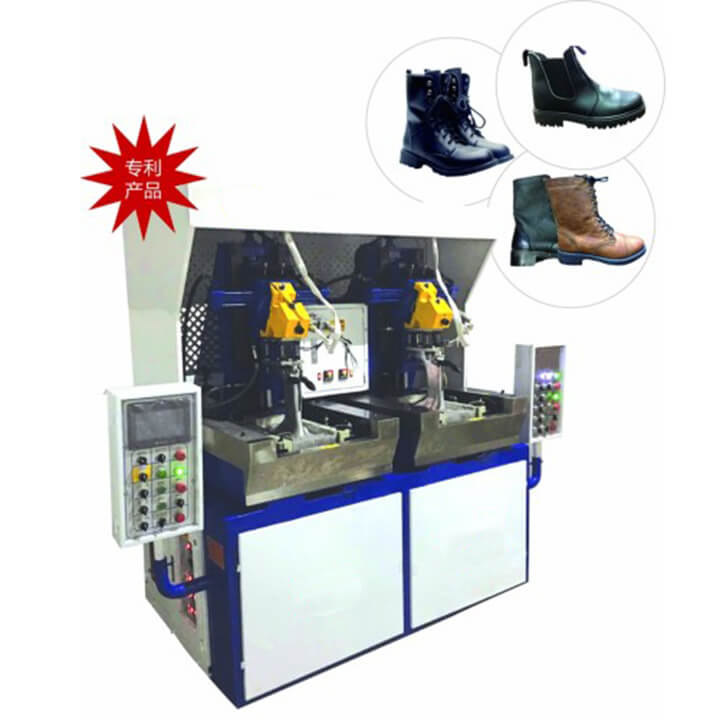

Fully Automatic Shoe Making Machine Rubber Vulcanizing Machine Dvp Press Rubber Molding Machine
Features of this machine
1. Driven by hydraulic pressure. Can work in manual state and in automation.
2. In order to reduce energy consumption, energy accumulator is used to guarantee the pressure in the hydraulic system, with saving energy about 30%.

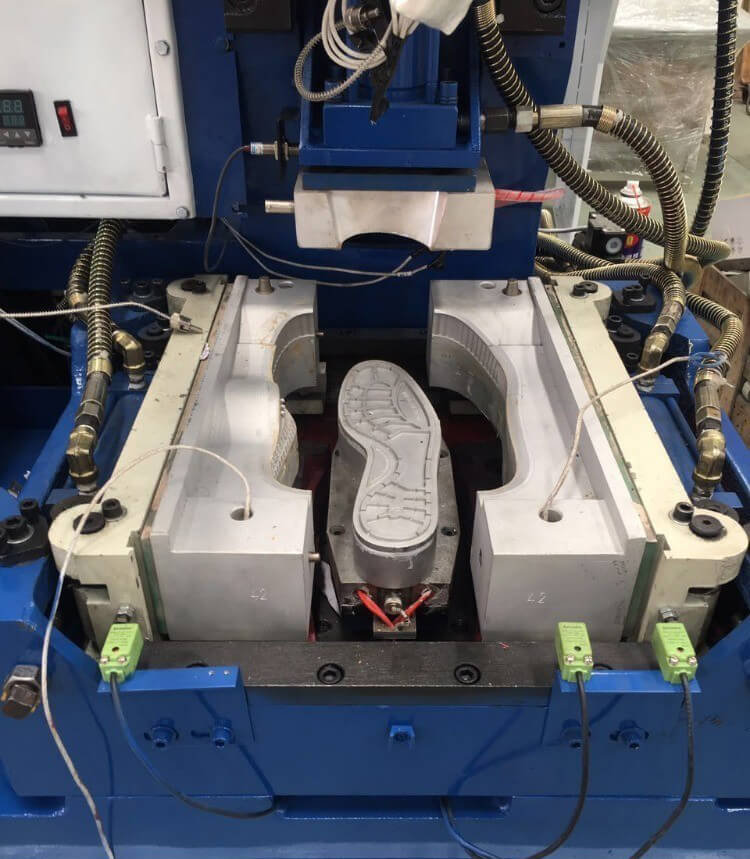

3. Last, bottom core and side mold heated, temperature controlled and displayed all separately.

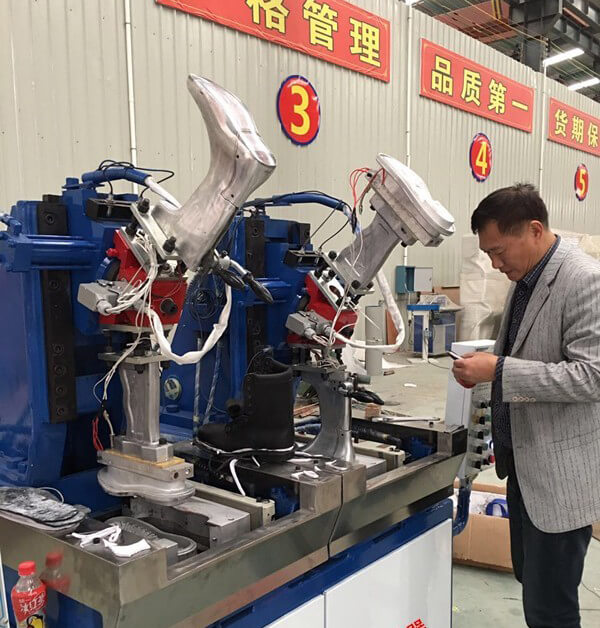

4. Automatically turn over last by hydraulic pressure(one mold with 2 lasts). Bottom core can go up and down and it can buckle tightly and automatically.
5. Adopt parallel double joined boarding clamp mold framework, which is driven directly by double cylinder.
6. The customer requirements pressure LAST . And DESMA Equipment institutions .
7. One set of this machine’s mechanism, hydraulic system and electric parts are all closed in an entirety, so very convenient to adjust and install.
8. One mold has two lasts. When one last works in sulfuration, the other one can prepare uppers for higher efficiency.
9. For mold’s adjustment and installation, manual buttons can rotate last, press last, clamp mold and make bottom core up and down.
10. The molds of our machines are interchangeable with DESMA’s.
Fully Automatic Shoe Making Machine Rubber Vulcanizing Machine Dvp Press Rubber Molding Machine
|
Model |
Unit |
DF-2YF |
|
|
Number of stations |
2 |
||
|
Bottom core pressure |
MPa |
9.0 |
|
|
Flip flip left and right angle |
180° |
||
|
Flip stop angle |
0-180° |
||
|
Frame size |
mm(LxWxH) |
440x200x95 |
|
|
Molding stroke |
mm |
65x2 |
|
|
Pick up the itinerary |
mm |
110 |
|
|
Bottom core lifting stroke |
mm |
45 |
|
|
total weight |
T |
2.2 |
|
|
Fuel tank capacity |
L |
250 |
|
|
Oil pump motor power |
KW |
2.2 |
|
|
heating power |
KW |
6.4 |
|
|
Among the shoe last power |
KW |
300Wx4 1.2 |
|
|
Bottom core power |
KW |
300Wx4 1.2 |
|
|
Side mode power |
KW |
1000Wx4 4.0 |
|
|
Dimensions |
mm(LxWxH) |
1700x1750x1900 |
|
|
Machine weight |
kg |
2300 |
