Shoe Factory Shoe Making Tools Pneumatic Manual Shoe Edge Massage Hammer Tools
Shoe Factory Shoe Making Tools Pneumatic Manual Shoe Edge Massage Hammer Tools
Products Description

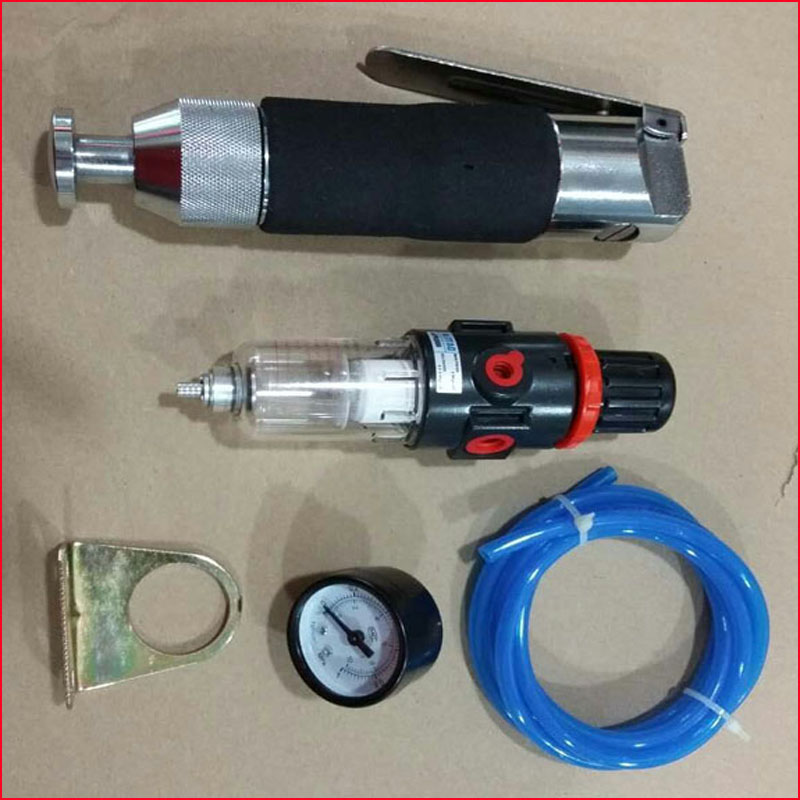

Pneumatic Manual Shoe Edge Massage Hammer
1. Product features: This product has the characteristics of heavy impact force, widely used in footwear and other industries to smooth cloth, leather and other soft materials, greatly improve the work efficiency, reduce the labor intensity of workers. Pneumatic grinding hammer instead of the traditional manual hammer, the product connected to the air compressor can adjust the size of the hammer force, suitable for a variety of angles easy to operate, pneumatic grinding hammer is finishing the wrinkles on the side of the shoe, so that the side of the shoe upper smooth shiny and other functions, the surface and the roll on the shoe last, the back cover, the inner waist, the outer waist, etc., so that the worker's work efficiency is greatly improved, reduce the work effort 2. Maintenance and maintenance 1. The compressed air should be clean and dry to prevent rust and corrosion in the cylinder. 2, continuous work, each shift should be no less than 4 times, each time with pneumatic lubricating oil 2-3cm. 3. Ensure that the maximum pressure does not exceed 0.63mpa. 4, continuous use, remove the 3# body clockwise every week, open 13# pieces, clean the piston and cylinder once, if there is a foreign body into the cylinder, also use this method to recover. 5, do not empty the massage hammer, do not carry out a rigid strike on high hardness materials, otherwise, it will shorten its service life. 6, for your health, please wear earplugs when long-term use, so as not to damage your hearing.
Product Paramenters
|
item |
value |
|
Warranty |
1 years |
|
Customized support |
OEM, ODM |
|
Place of Origin |
China |
|
Guangdong |
|
|
Brand Name |
DAFENG |
|
Model Number |
DF-1006 |
|
Type |
Air Hammer |
|
Average Air Consumption |
4cfm |
|
Maximum Torque |
None(air gun) |
|
No-Load Speed |
N/A |
|
Product name |
Pneumatic Manual Shoe Edge Massage Hammer |
|
Application |
Pneumatic Manual Shoe Edge Massage Hammer |
|
Weight |
2.5KG |
|
Packing |
L260*w170*H60mm |
