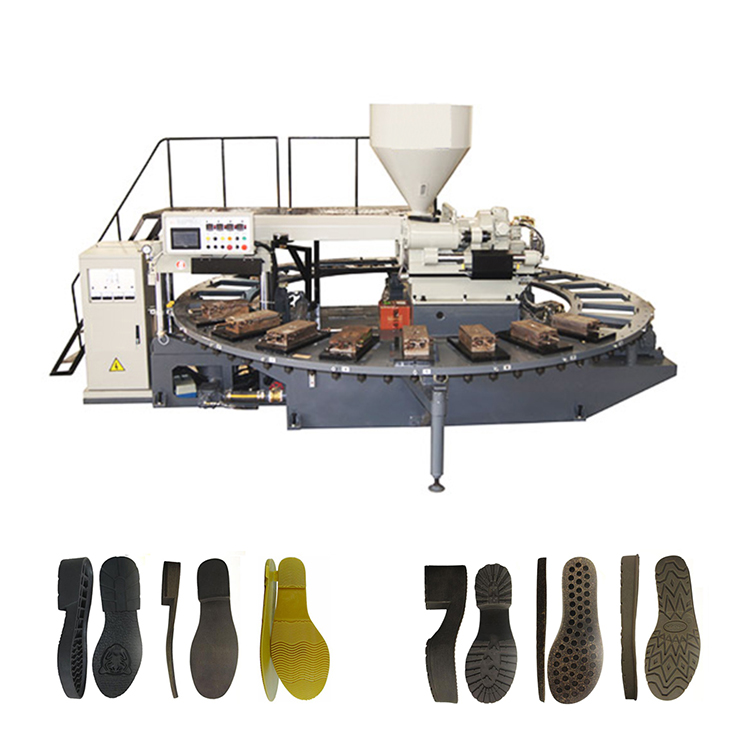

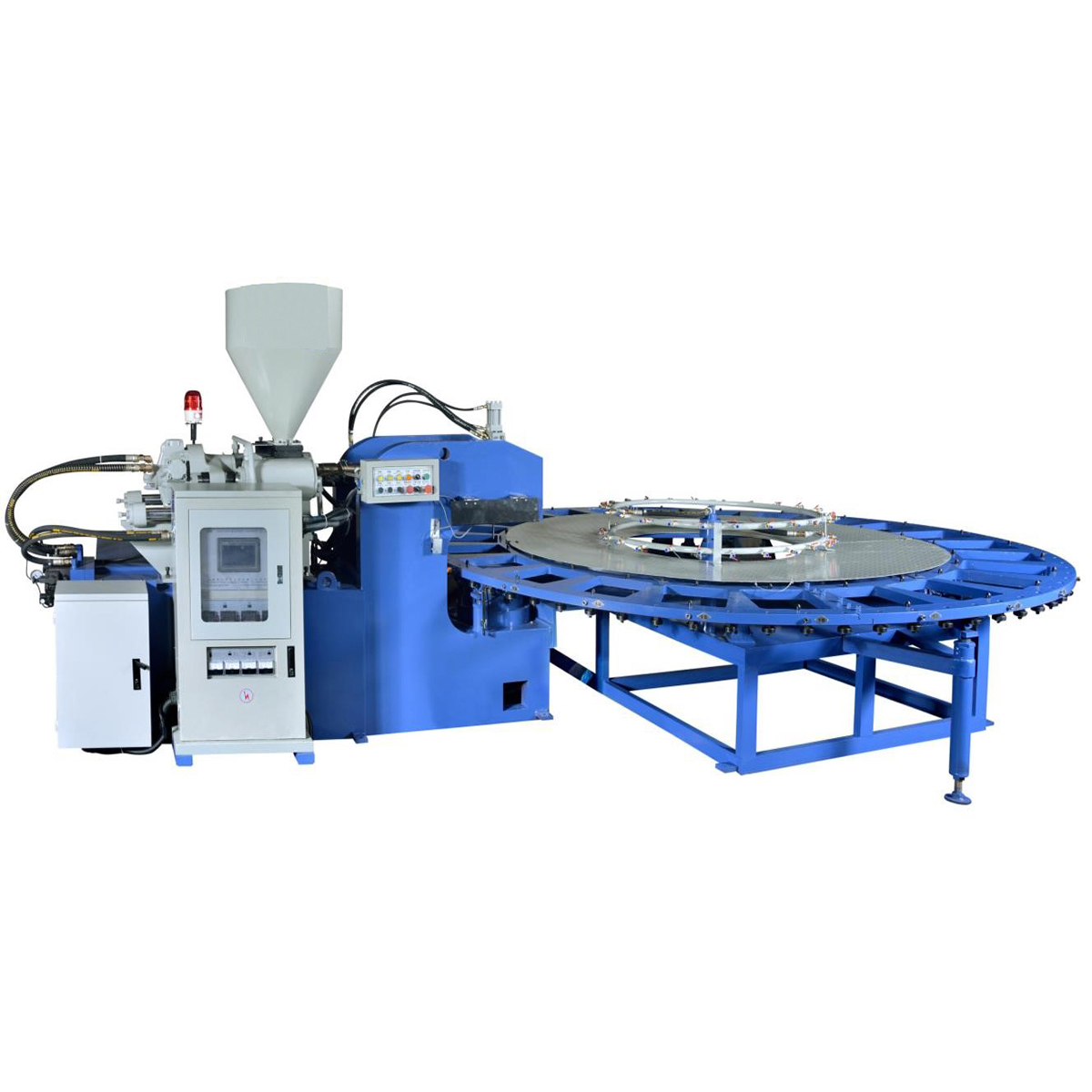

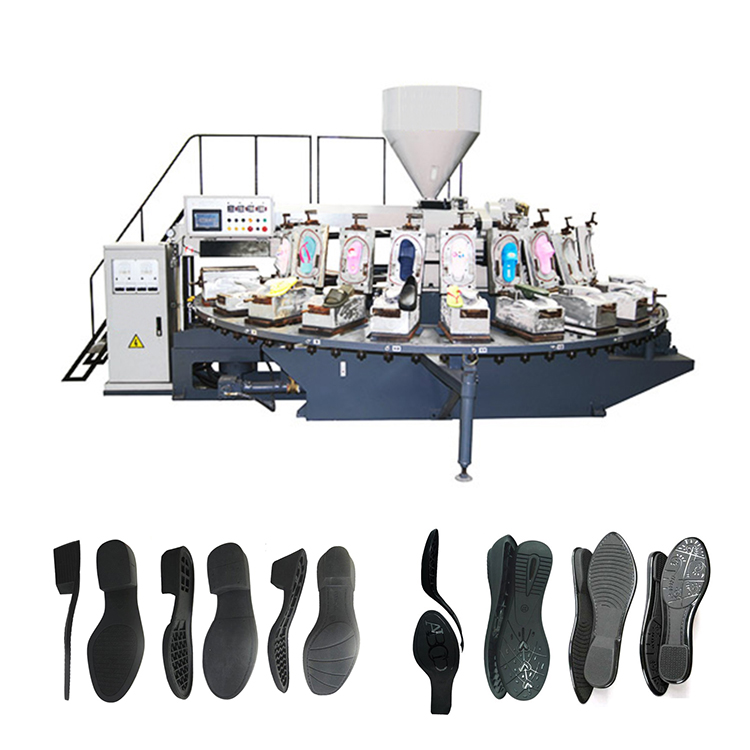

PVC sole air blowing injection molding machine PVC/TPU/TPP Shoe Making Machine for Sandals & Slippers
PVC sole air blowing injection molding machine PVC/TPU/TPP Shoe Making Machine for Sandals & Slippers
Products Description
PVC sole air blowing injection molding machine PVC/TPU/TPP Shoe Making Machine for Sandals & Slippers
1.This machine operation is controlled by fully automatic computer and PLC saving labor and improving productivity.
2.This machine has the function of water cooling.
3.The oil and electric circuit is controlled independently to reduce waiting time, produce fast. The injection pressure, volume of each station can be set independently.
2.This machine has the function of water cooling.
3.The oil and electric circuit is controlled independently to reduce waiting time, produce fast. The injection pressure, volume of each station can be set independently.
4.It can use different molds at same time which save time of mold-change and extends cooling time.
5.Servo system is select-able to save electricity and auto opener is also select-able to save labor. These two items can be
selected by customer.
5.Servo system is select-able to save electricity and auto opener is also select-able to save labor. These two items can be
selected by customer.
Products Paramenters
|
Technical Terms |
UNIT |
DF-118W-12 |
|
|
Screw diameter |
mm |
65 |
60 |
|
Max.Injection volume |
Cm³ |
850 |
600 |
|
Heating bands power |
Kw |
10 |
10 |
|
Temperature control |
Point |
4 |
4 |
|
Screw rotation speed |
r.p.m |
0-200 |
0-200 |
|
Max. Injection stroke |
mm |
210 |
210 |
|
Motor |
kw |
18.5 |
18.5 |
|
Clamping force |
tons |
120 |
120 |
|
Work stations |
stations |
12 |
24 |
|
Space for mold |
Mm(L*W*H) |
420*300*160 |
420*300*160 |
|
Machine dimension |
Mm(L*W*H) |
3500*2150*1800 |
3500*3150*1800 |
|
Installation dimension |
Mm(L*W*H) |
4700*3500*2300 |
5000*3500*2300 |
|
Machine weight |
Kg |
5800 |
5500 |
|
Total power |
kw |
24 |
10+18.5 |
|
Servo Motor |
kw |
18.5 |
18.8 |
|
Motor |
kw |
5.5 |
5.5 |
