Double Station Shoe Insole Moulding Machine,Shoe Insole Molding Making Machine

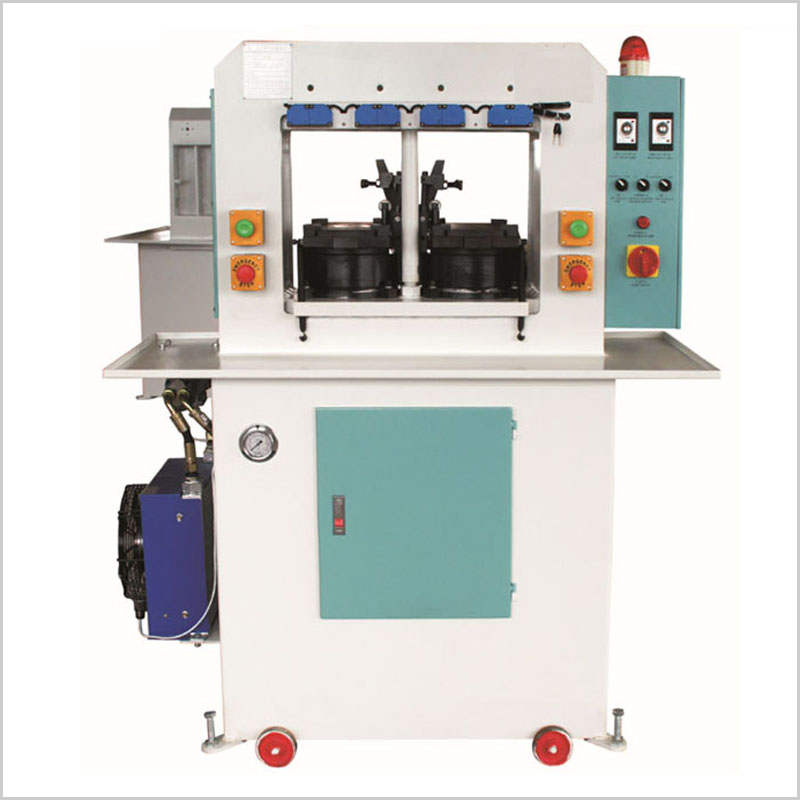

DF-605D BIG POWER DOUBLE-STATION INSOLE MOULDING MACHINE
USE
The machine can press the flat insole in the die to fit the curved surface shape of shoe last.
This machine is applicable to forming for the mid-soles female and male shoes
CHARACTERS
1.Bigger power, more stable performance.
2.Adopt double-seat and double oil cylinders to quickly strengthen the pressure, the forming effect of the insole will be excellent under high pressure.
3.Electric timing automatizes the forming process, and the forming time is very exact.
4.Various models of insoles can be processed and the adjustment of the upper and lower die is easy.
5.With independent cooling system, the oil temperature is stable, which guarantees product quality.
6.With positioning support, place insole more conveniently and quickly, improve work efficiency, ensure the product quality.
7.This machine has infrared safety protection device
PARAMETER
Model: DF-605D
Power of motor: 3kW
The pressure: 0-65ton
Package size: 1340×650×1600mm
Gross weight / Net weight: 820kg/780kg
