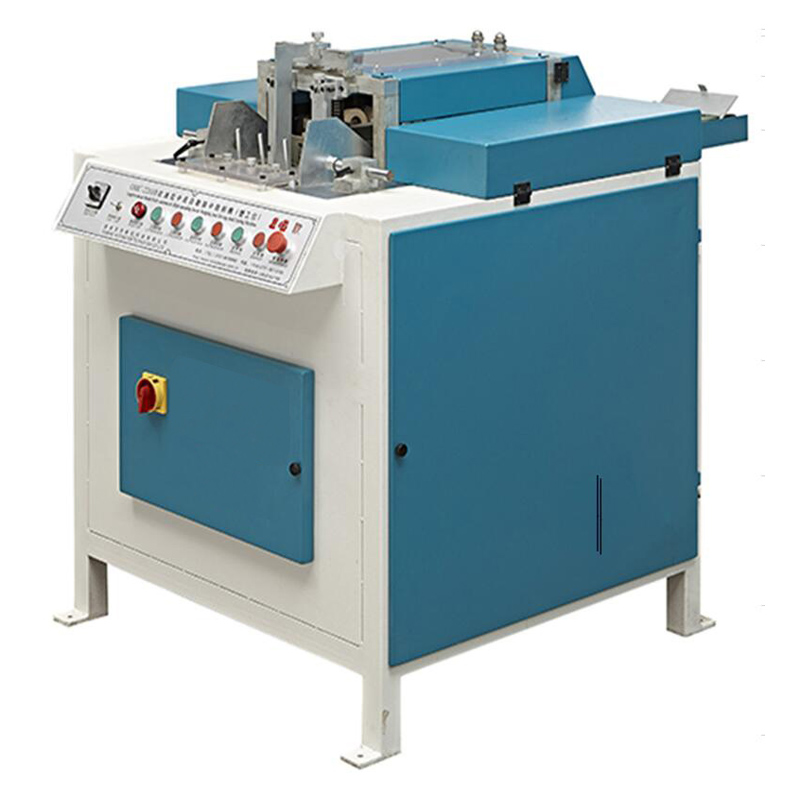

High Speed Automatic Shoe Insole Making Wedging Skiving Machine Shoe Sole Making Machine
1. This machine adopts the insole wedging and skiving and cutting, so as to allow the insole to fit in.
2. This machine adopts the linear-type horizontal feeding, no adjustment is needed for any material with a thickness of 0.75-
4.0m/m for wedging thickness.
3. The insoles after skiving and cutting by this machine have the consistency of 100% in thickness and length, therefore the quality of insole is ensured, and the insoles after skiving and cutting are lined up in order through the auxiliary line, and are counted accurately through the electronic device.
4. The insoles after skiving and cutting by this machine require no artificial buffing, and are flat and smooth without any discard.
5. The machine is easy to operate and can be operated by unskillful operators, the insoles after skiving and cutting require no artificial buffing, which substantially reduce the manpower.reduce the production cost and increase the economic benefits.
|
Model |
Size |
Power |
Voltage |
weight |
|
DF-2288 |
1110*880*1730mm |
3.8KW |
380v/220v |
600KG |
