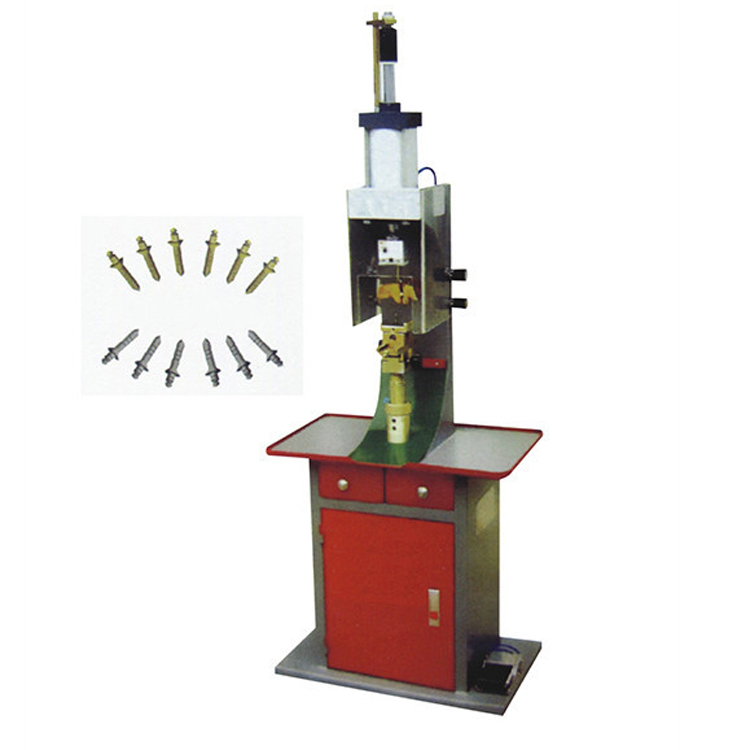

Manual Pneumatic Shoe Making Equipment ,Shoe Insole Nailing Fixing Machine
Purpose of midsole nailing machine:
Men's and women's shoes for formal wear
Fix the midsole on the last to realize nail free operation
Features of midsole nailing machine:
1. The fixing nail can be reused;
2. Save a lot of shoe nails and hot melt adhesive;
3. Omit the nail pulling personnel in the back section to prevent the nail from being left in the shoe;
4. The midsole shall be fixed firmly without displacement
5. The specification of middle bottom nail is 2.2mm/2.6mm/3.2mm/3.8mm/4.3mm/5.0mm, 1000 pieces / PCs
|
model |
size |
N.W |
pressure |
Production |
|
DF-316 |
570mm×390×1560 |
55KG |
0.5Mpa |
3000Pairs/8Hr |
