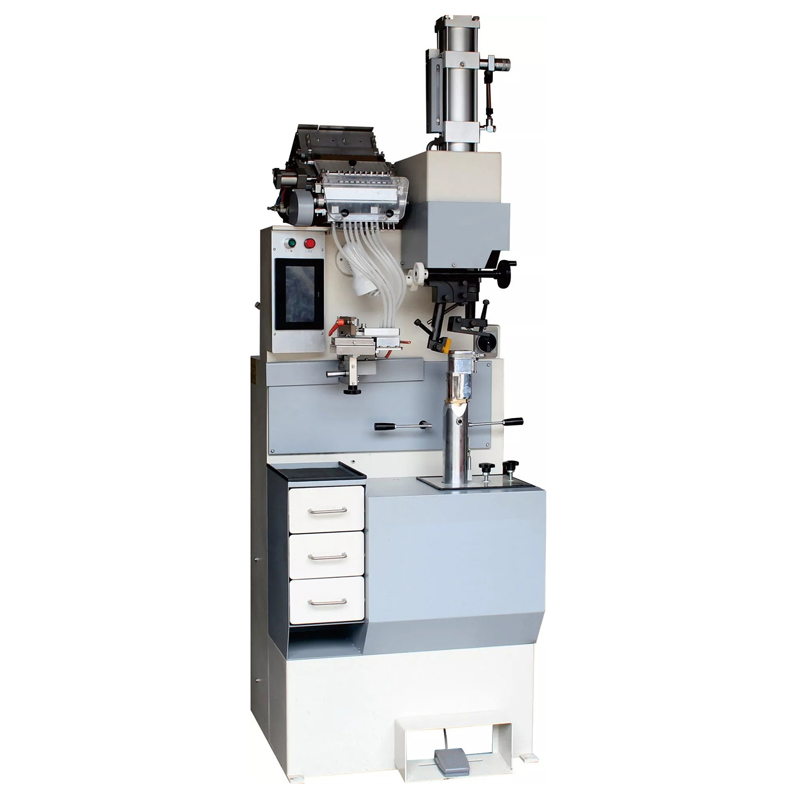

Shoe Making Machine Fully Automatic Pneumatic Shoe Heel Nailing Machine
Shoe Making Machine Fully Automatic Pneumatic Shoe Heel Nailing Machine
Heel nailing machine is applicable to nailing operation of any shoes/boots for men and women.
The imported PLCcontrol system can achieve an accurate and effcicent operation.
The gasoline balance cylinder can press heel of any height and protect heel form damage.
It is economical and practical for no need of pressing mould.
The nailing box can provide 1-12 pieces 6-28mm nails and screws of any lehgth.It is provided with automatic nailing order selection function.
The nailing angle can avoid penereating through heel.The nail charghing arm of automatic nail feeding device is fixed with safety device,which can keep the operator form injury.
The three nailing mode options can secure the heel form breaking for over pressure of striking.
|
Model |
DF-682 |
DF-682A |
|
Dimension |
800*720*2100mm |
800*720*2100mm |
|
N.W |
420kg |
350kg |
|
Air cons |
0.6Mpa |
0.6Mpa |
|
Power |
0.2kw |
0.2kw |
|
Voltage |
220V/50Hz |
220V/50Hz |
|
Production |
2000pairs/8hrs |
1200pairs/8hrs |
| Model | Mechanical Dimensions | Package Dimensions | Weight | Air Pressure | Power | Voltage | Yield |
|
DF-682 |
800*720*2100mm |
830*750*2230mm |
400KG |
0.6Mpa |
0.2kw |
220V/50Hz |
1200pairs/8hrs |
|
DF-682A |
800*720*2100mm |
830*750*2230mm |
450KG |
0.6Mpa |
0.2kw |
220V/50Hz |
1200pairs/8hrs |
