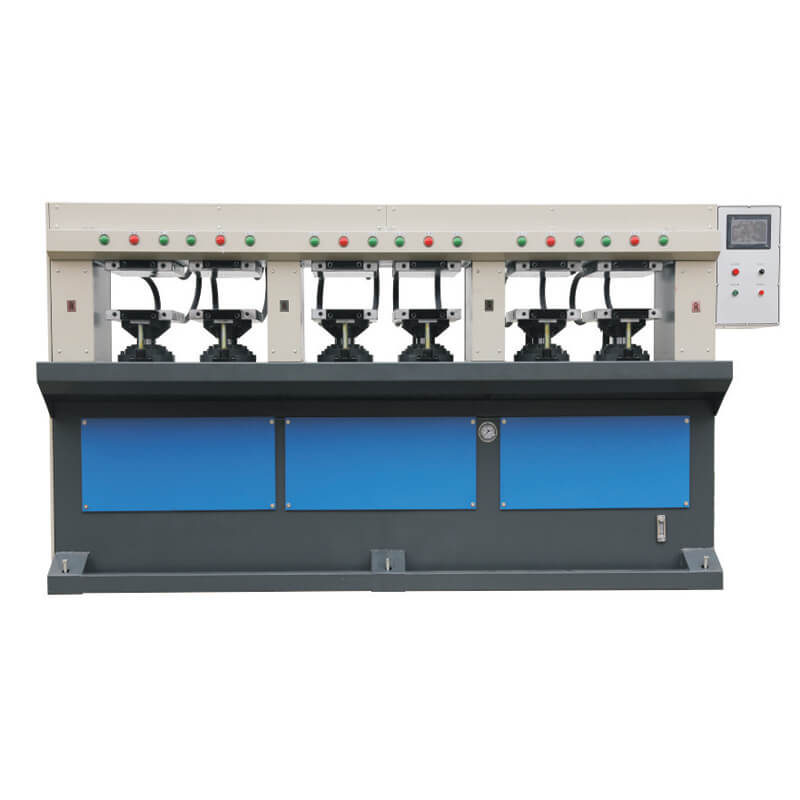

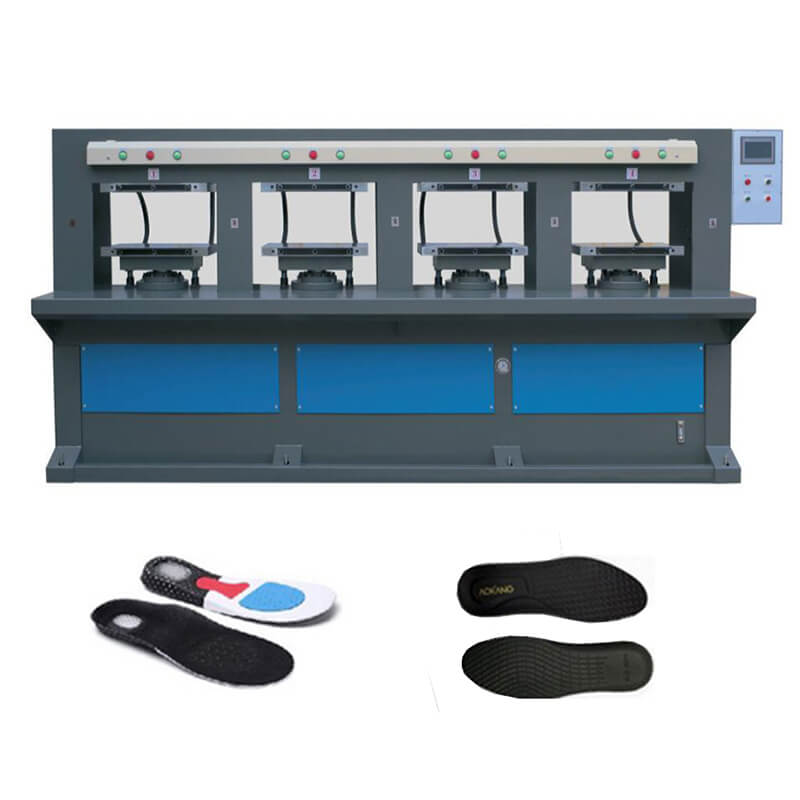

Slipper Shoe Insole Making Machine Hydraulic 4 6 Station PU Foam EVA Insole Cold Press Moulding Machine
Slipper Shoe Insole Making Machine Hydraulic 4 6 Station PU Foam EVA Insole Cold Press Moulding Machine
Slipper Shoe Insole Making Machine Hydraulic 4 6 Station PU Foam EVA Insole Cold Press Moulding Machine
hydraulic 4 station EVA insole cooling molding footwear slipper sandal shoe making machine
Features:
1. This machine is suitable for various EVA products, as: sole , movable sockliner & beach shoe etc., cooling forming.
2. This machine is gantry structure which can be resisted big pressure, long servicing lift and high tension resistance.
3. Equipped with cooling plate and cooled at two direction, circulation effect very fast and evenness
4. This machine got safety protect function, high safety, those can be protected the operator.
Product Paramenters
|
model |
DF-8004A-B |
DF-8006A-B |
DF-8004B |
|
mold plate size |
300×400 |
300×400 |
400×600 |
|
mold seat QTY |
4 |
6 |
4 |
|
oil pressure |
25T×4 |
25T×6 |
40T×4 |
|
power |
7.5HP |
7.5HP |
7.5HP |
|
machine size(mm) |
2400×1200×1650 |
3300×1200×1650 |
4200×1100×1850 |
|
N.W/G.W(kg) |
2500/2510 |
3300/3310 |
4000/4010 |
|
item |
value |
|
Applicable Industries |
Manufacturing Plant |
|
Showroom Location |
Thailand, None |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
New Product 2020 |
|
Warranty of core components |
1 Year |
|
Core Components |
Motor, Pressure vessel, Gear, Pump |
|
Condition |
New |
|
Production Capacity |
6000pairs/8hours |
|
Place of Origin |
China |
|
Guangdong |
|
|
Brand Name |
DAFENG |
|
Voltage |
380v |
|
Power |
7kw |
|
Dimension(L*W*H) |
3300*1200*1700 |
|
Weight |
3300 |
|
Warranty |
1 Year |
|
Key Selling Points |
High-accuracy |
|
Application |
Shoe Insole |
|
Product name |
EVA insole cooling molding footwear slipper sandal shoe making machine |
|
Function |
Making EVA Shoe Sole |
