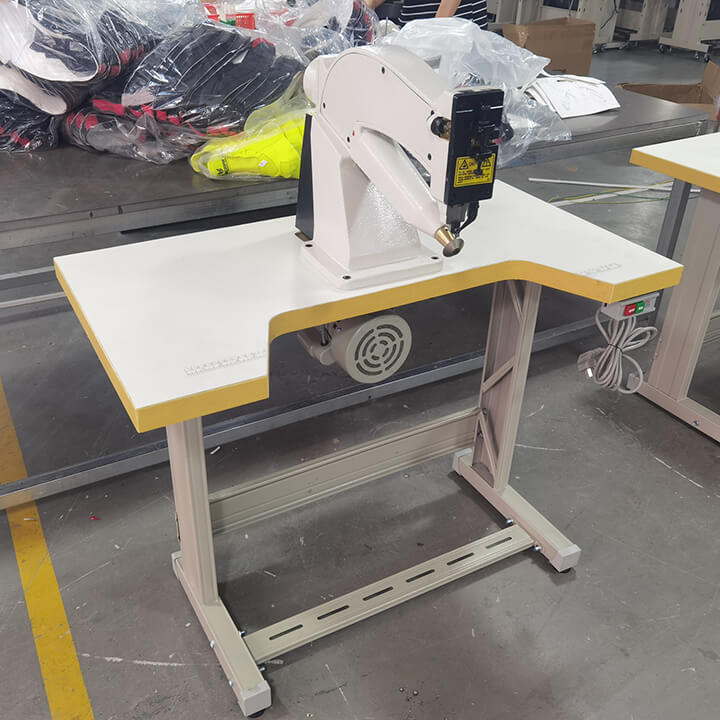

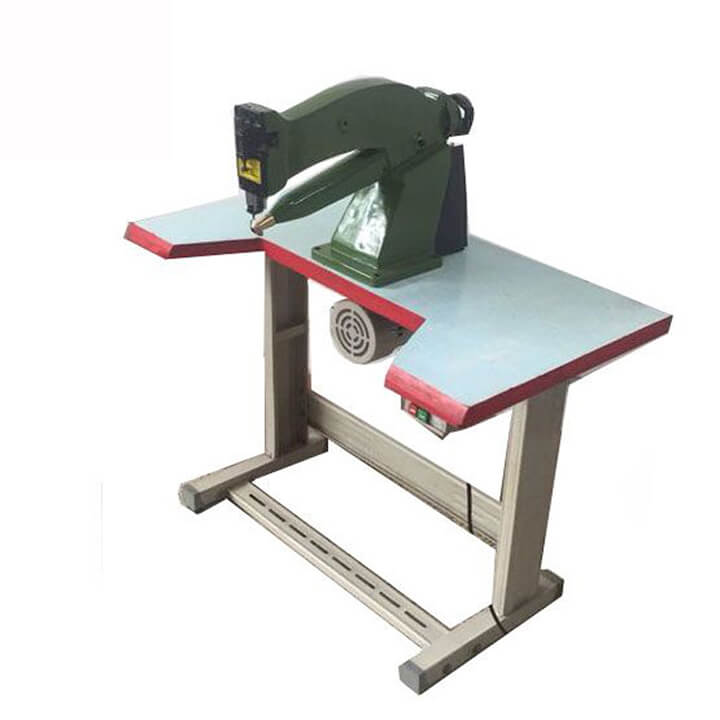

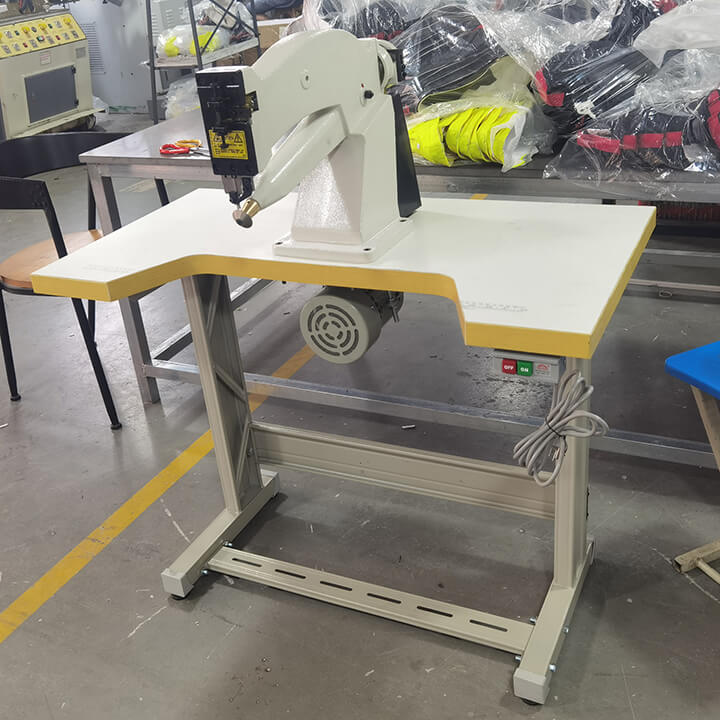

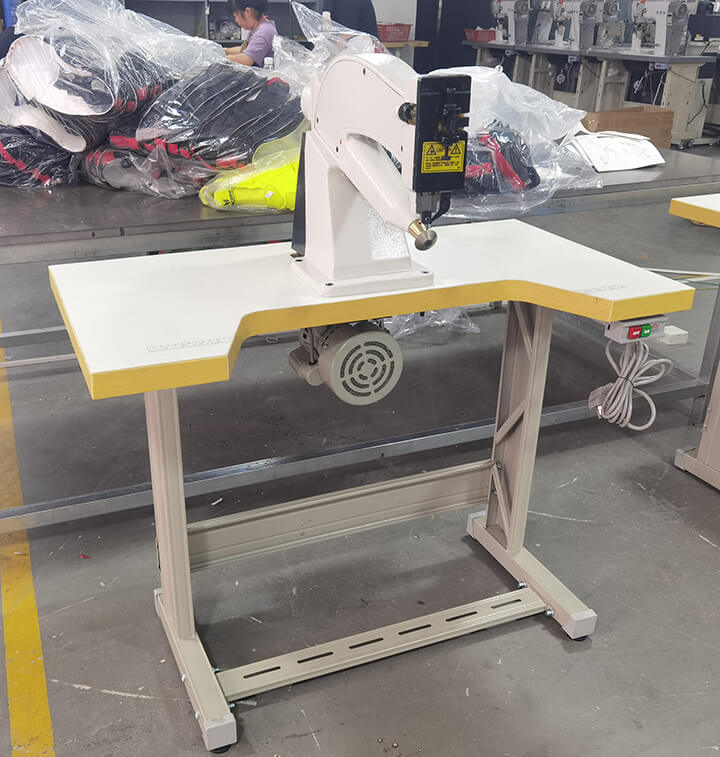

Shoe Making Sole Trim Machine Shoe Footwear Upper Sole Edge Trimming Machine
Shoe Making Sole Trim Machine Shoe Footwear Upper Sole Edge Trimming Machine
1. Product Features:
1. Trimming of raw edges of sole, such as rubber, plastic, Pu shoes, Eva foam products, etc.
2. Trimming of inner parts of Vamp, such as: Women's shoes, sandals, men's shoes, full-top shoes, boots, etc.
3. VARIOUS COMPUTER MOUSE PADS, protective Sheathing of sports goods, trimming of rough edges of rubber automobile parts
4. Trimming of other rubber, plastic, leather products, electronic products and finished sweaters
2. Inner trimming machine parameters:
Machine (length * Width * Height) : 560 * 255 * 470mm 23KG
Car Plate (length * Width * Height) : 1000 * 500 * 80mm 8KG
foot frame (length * Width * Height) : 860 * 620 * 140mm 8KG
Motor (length * Width * Height) : 305 * 235 * 235MM 8KG
machine whole size: 1000 * 500 * 1100MM
weight: 50KG
voltage: 220V 250W or 380V 370W, either option
|
Model |
weight |
Maximum speed |
size |
voltage |
|
DF-202 |
26/24kg |
4800S.P.M |
570X485X260mm |
220V/380V/50Hz |
