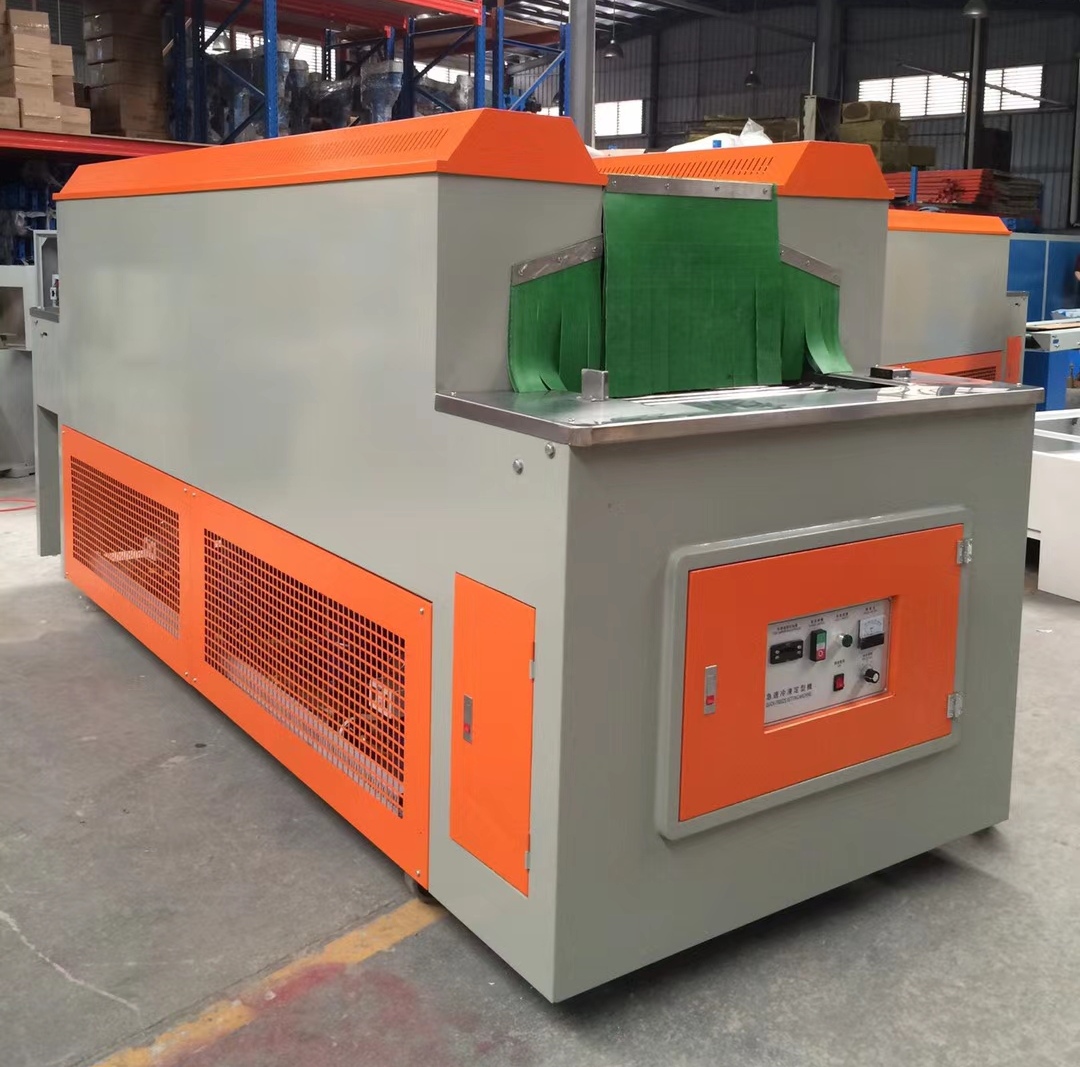

Sneakers Shoe Freezing molding Machine,Shoe Maker Chilling Forming Machine
High speed refrigerating machine
This machine adopts advanced technology and imported compressor and components.
The convenying belt made of special material provided with refrigerating regulating device can accelerate
stabilization and aggregation of aqueous glue to ensure perfect jointing and keep optimal shape after
dilating and is free of mold groeth.
Double side concentrated heat insulation material used in the shell has good heat preservation
performance and can reduce energy consumption.
The large power refrigerating system with dual track cooling air and double auto-doors is equipped,with
automatic unfreezing device has the features of short refrigerating time and good molding result,which will
expedite the turnover of last and decrease production cost.
The powerful refrigerating system and high rotation speed air circulation system will reach up to -20℃
instantly.
|
Model |
Dimension |
N.W |
G.W |
Power |
Production |
Voltage |
|
DF-238D |
L3500*W1500 *H1350mm |
800KGS |
950KGS |
12HP |
1800PAIRS/8HRS |
380V/50HZ |
